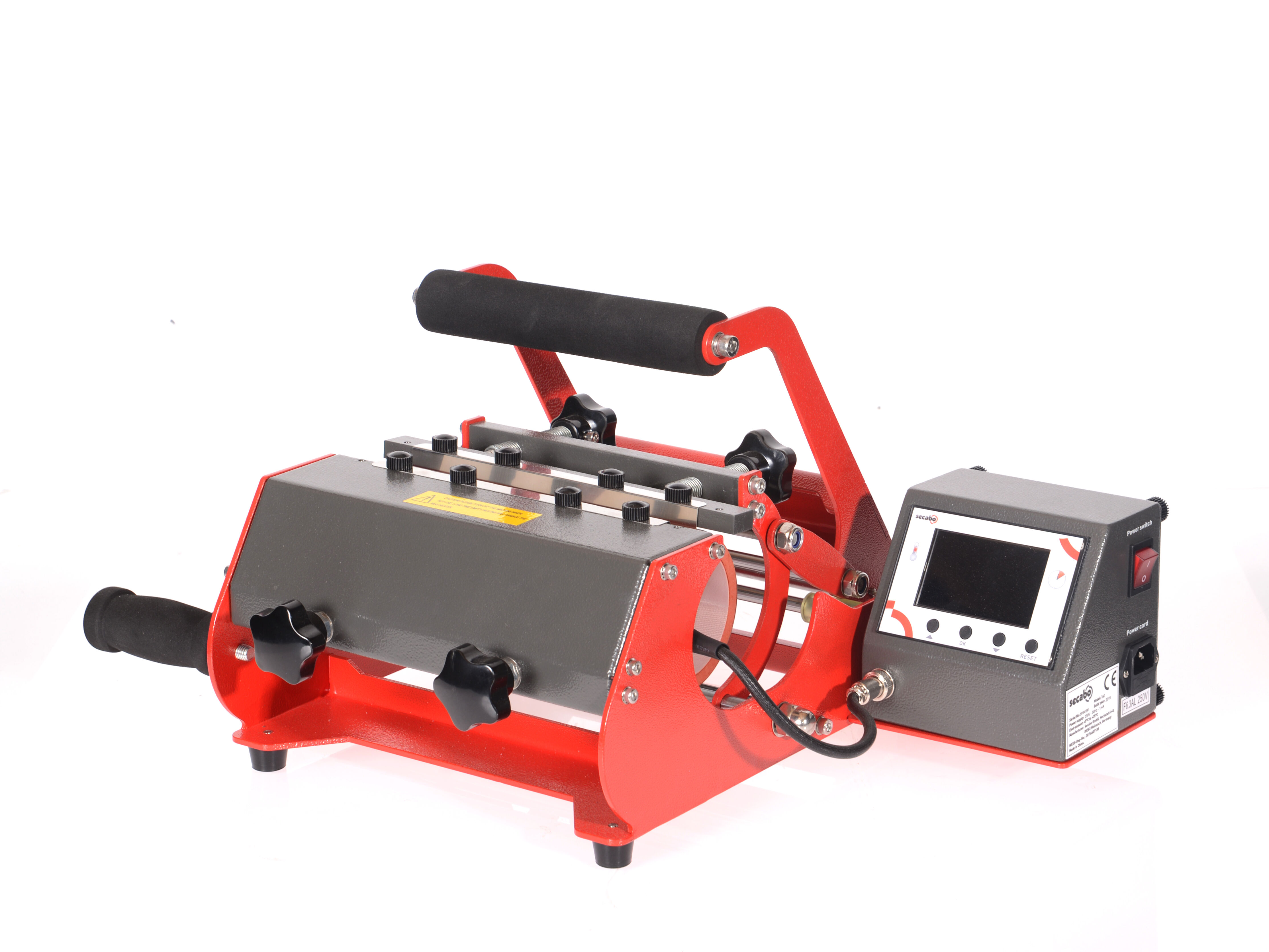

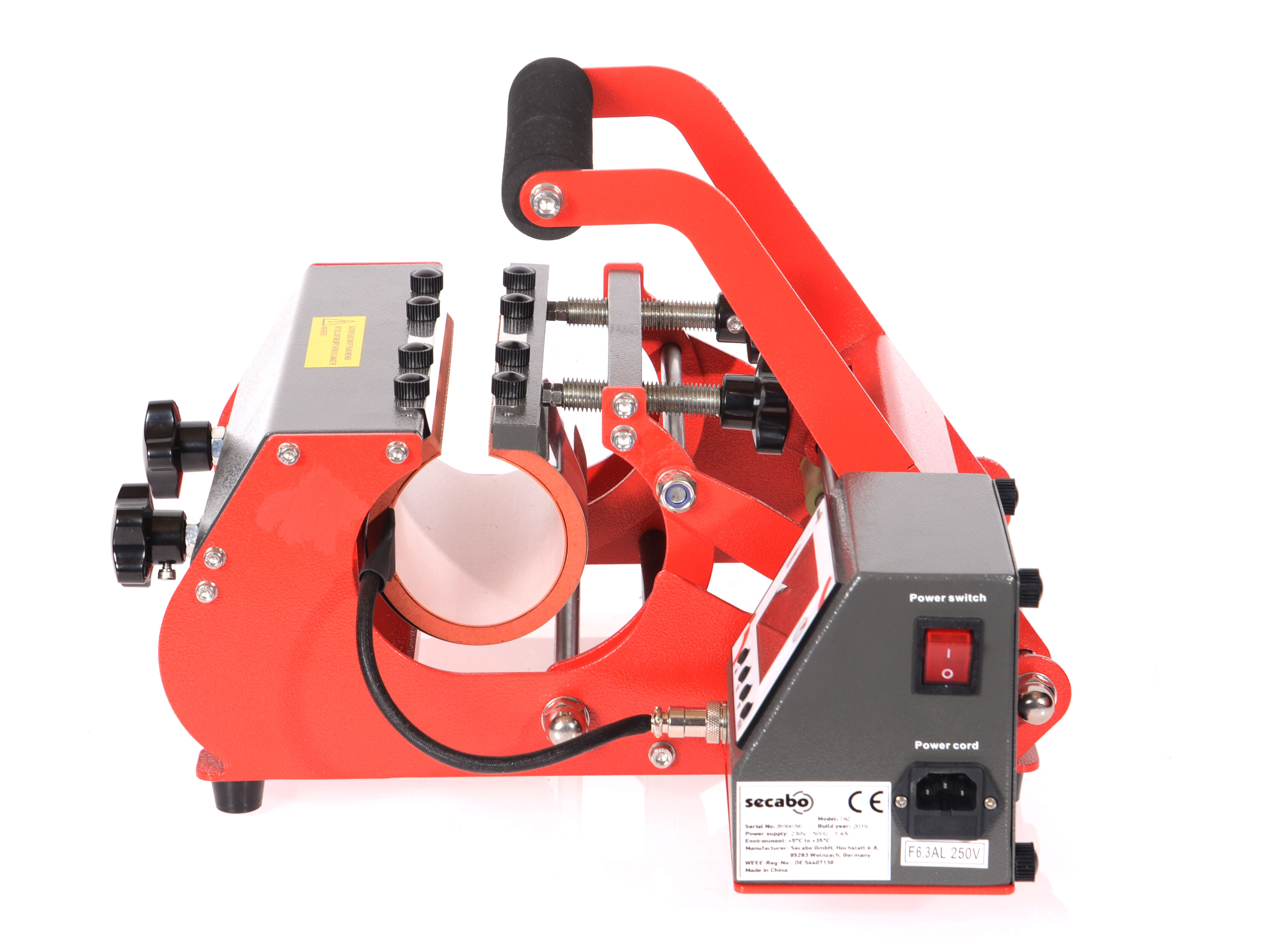

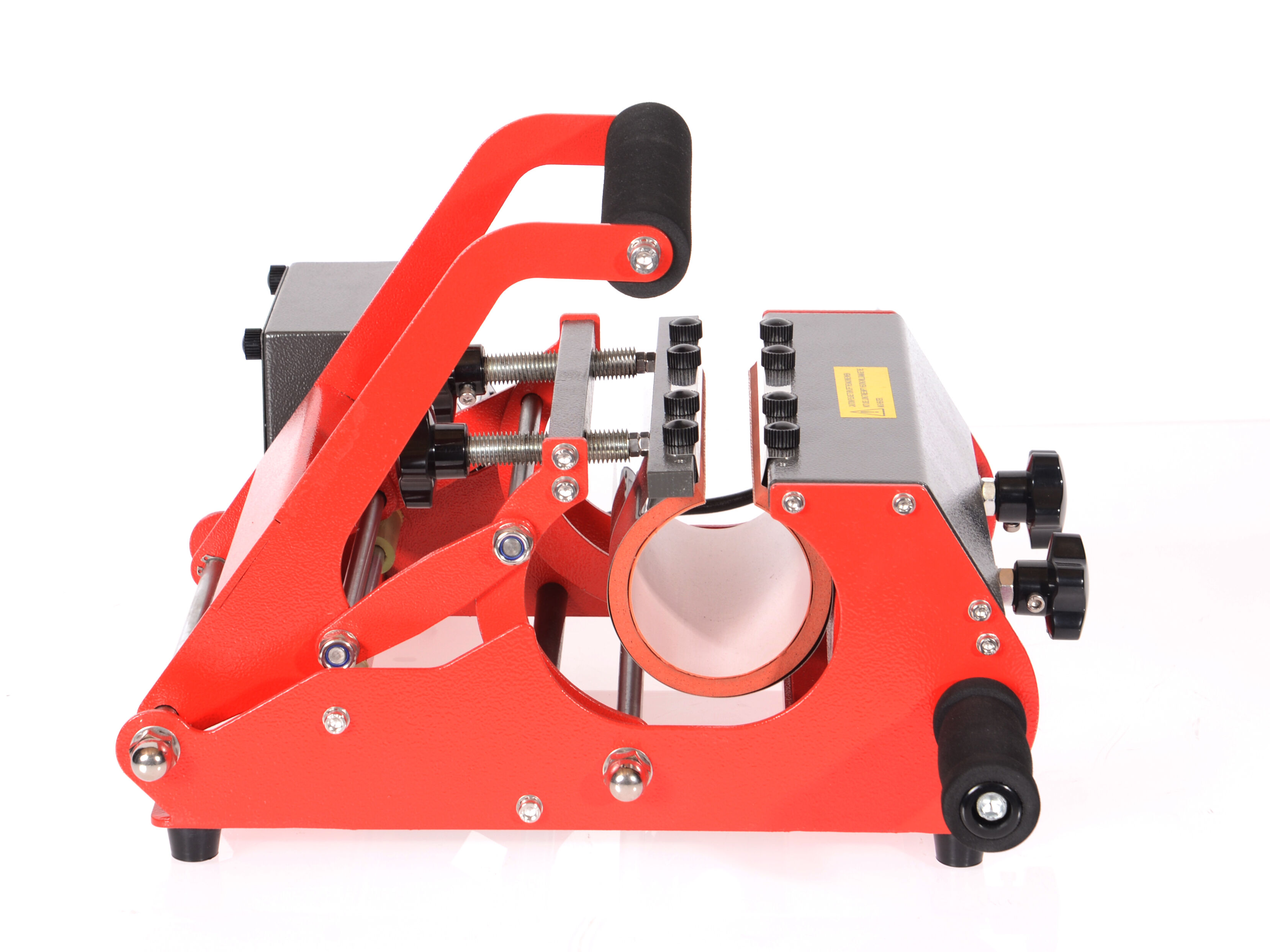

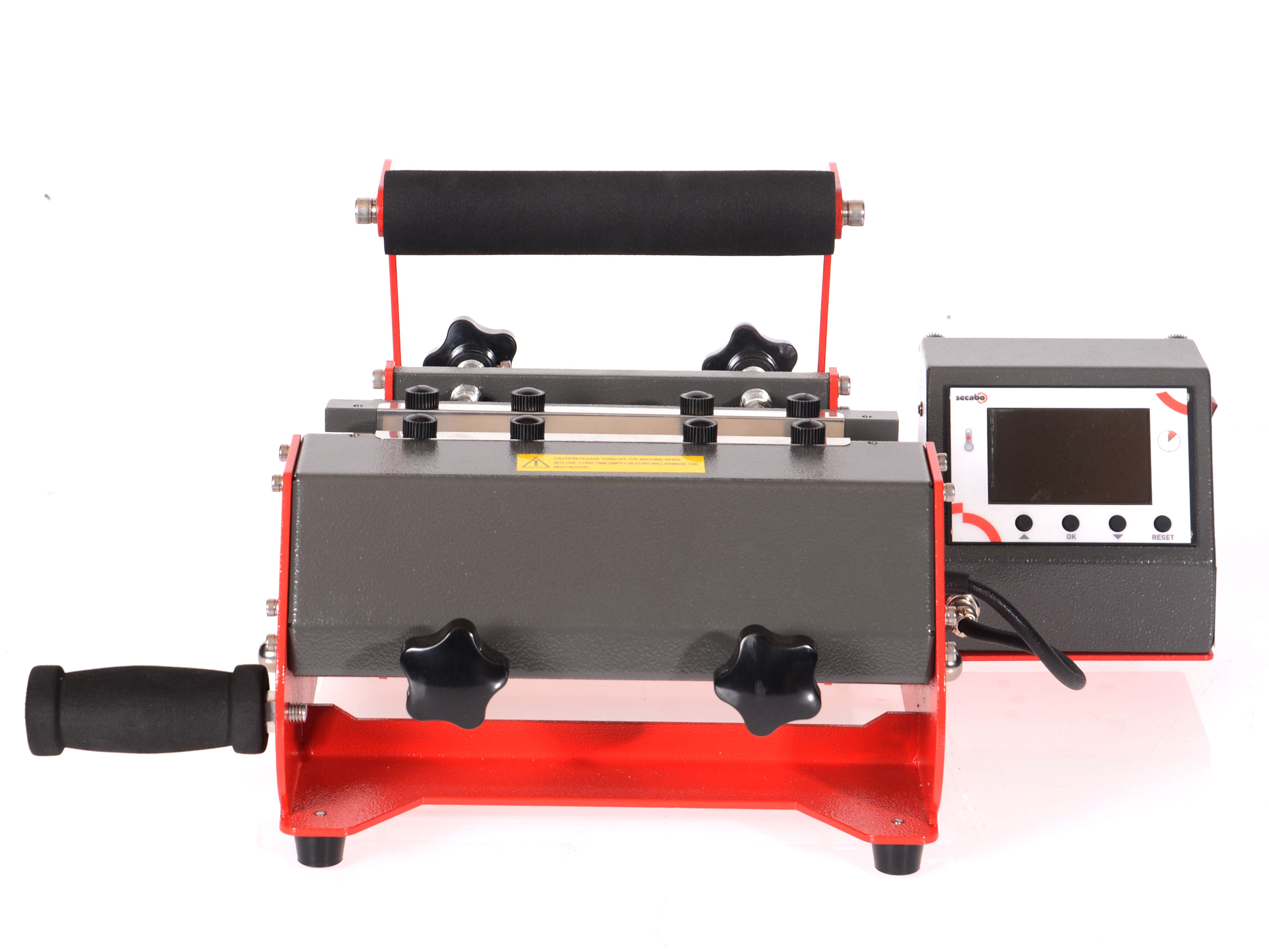

The TM2 Mug Press from Secabo has an extra-wide heating element that allows you to print 2 mugs at the same time - or a jug or large mug up to 21 cm high. Whether you are a beginner or a professional - with the TM2, sublimation transfers on ceramic cups and similar objects are particularly efficient. The digital controller controls the temperature and time precisely and reliably. The contact pressure can be easily adjusted using a handwheel. The device is supplied with a sleeve for 325 ml cups. Six additional heating elements in various sizes are optionally available, including for conical cups. Our recommendation: Only switch on the Heat Press for actual use, as this protects the heating element and saves energy.
Application: Cups
Features: Manual press
Series: TM2
Dimensions 60.5cm x 42.8cm x 29.7cm
max. cup height 21 cm
max. cup diameter 7.5cm to 9.0cm cm
options Heating element for espresso cups, 4.5cm - 5.5cm; heating element for large conical cups 5.5/8.0cm - 6.5/9cm; heating element for cups 60mm - 75mm; heating element for conical cups 5.5/9.0cm - 6.5/10.5cm
Scope of delivery Mug Press, heating element for 2 cups, 7.5 - 9.0cm, power cable, operating instructions
Max. temperature 225 °C
Max. time preset 999 s
Power supply 230V / 50Hz - 60Hz, 300W
Operating environment +5°C - +35°C / 30% - 70% humidity
Weight without packaging 10kg
Weight with packaging 15.00 kg
Brand name Secabo
