Secabo TM5 Mug Press
Product number:
109.017.10
GTIN/EAN:
4251486238555
Weight:
35,00 kg

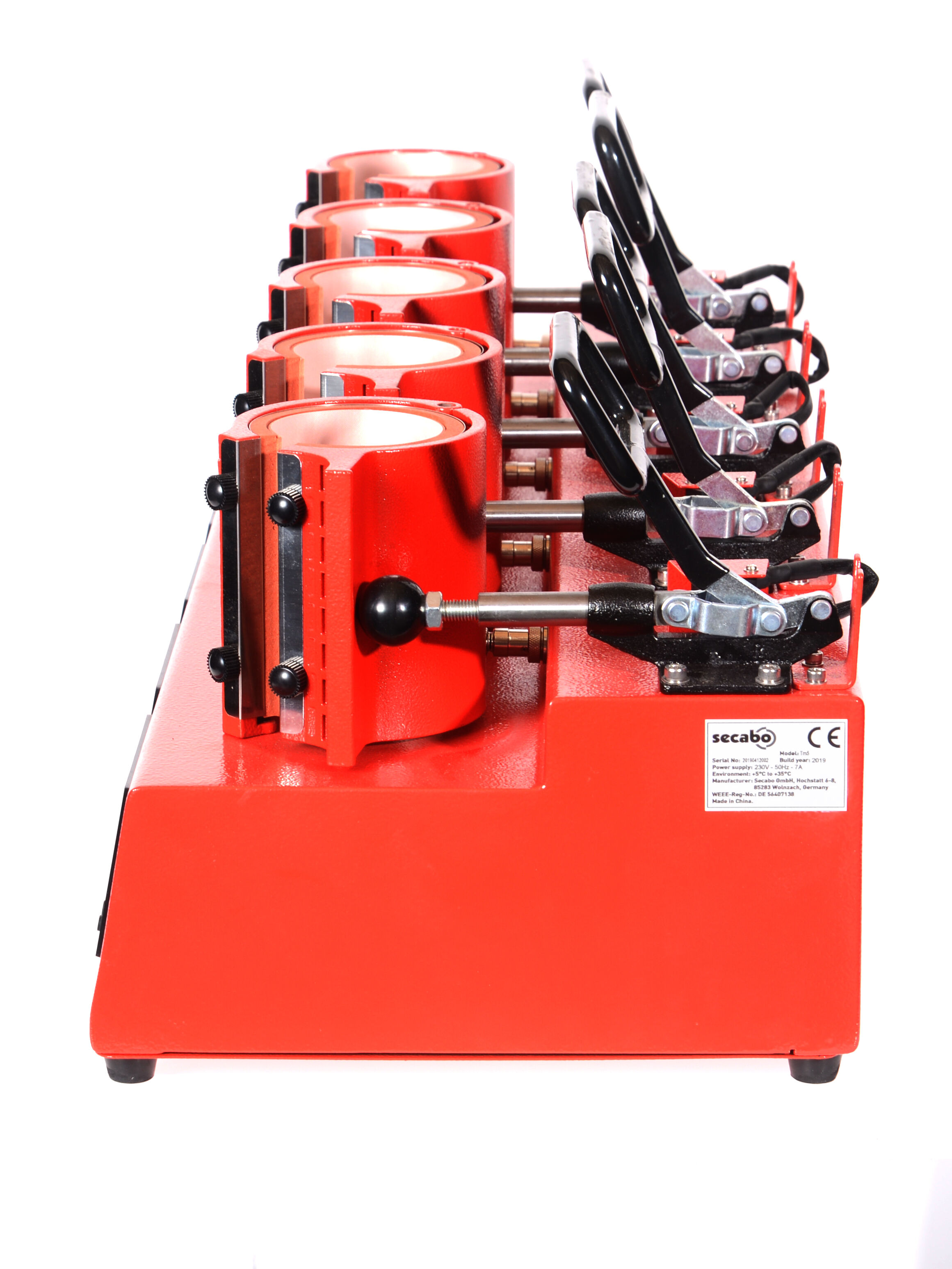

With the TM5 Mug Press from Secabo, orders can be processed faster. It can carry out transfers on up to 5 cups simultaneously, thanks to 5 separately controllable heating elements. This makes the TM5 ideal for efficient sublimation transfers on ceramic cups and similar objects, especially for larger print runs or higher throughput. The digital controllers control the temperature and time of the heating elements precisely and reliably. The contact pressure can be easily adjusted using a handwheel. The appliance is supplied with 5 cuffs for 325 ml cups, with an additional spare cuff included free of charge. An additional heating element for small cups is available as an option. Our recommendation: Only switch on the individual heating elements for actual use, as this protects the heating elements and saves energy.
| Application: | Cups |
|---|---|
| Features: | Manual press |
| Series: | TM5 |
Login
| Abmessungen | 92 x 36 x 35 cm |
| max. Tassenhöhe | 12 cm |
| max. Tassendurchmesser | 7,5 bis 9,0cm cm |
| Optionen | Heizelement 60mm - 75mm |
| Lieferumfang | Tassenpresse mit 5 Heizelementen 75mm - 90mm, Stromkabel, 1 zusätzliches Heizelement 75mm - 90mm, Bedienungsanleitung |
| max. Temperatur | 225 °C |
| max. Zeitvorwahl | 999 s |
| Stromversorgung | 230V / 50Hz - 60Hz, 5x 350W |
| Umgebung | +5°C - +35°C / 30% - 70% Luftfeuchtigkeit |
| (Transferpresse) Gewicht ohne Verpackung | 28 kg |
| Gewicht mit Verpackung | 35,00 kg |
| Marke | Secabo |
