Membrane base plate 45cm x 45cm for TC5, TC5 SMART and TC5 LITE
Product number:
109.507.45
GTIN/EAN:
4251486203843
Weight:
10,00 kg

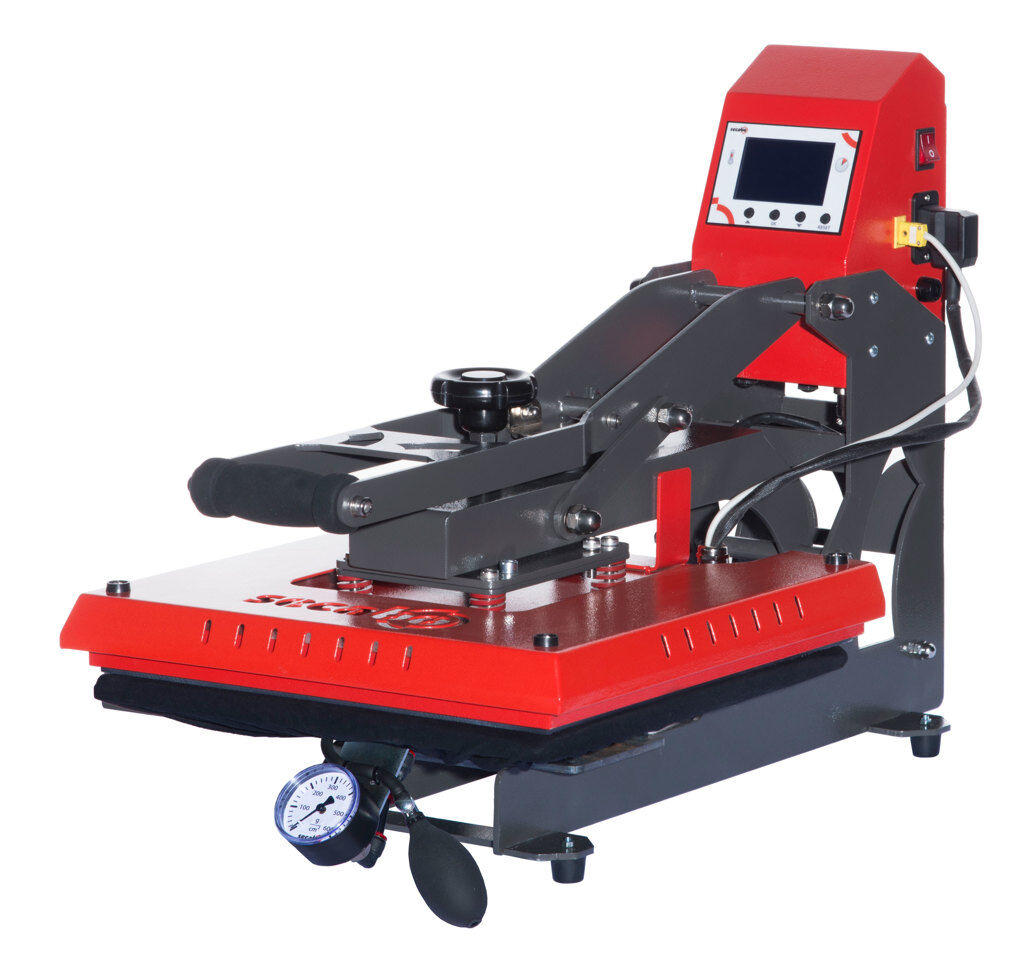

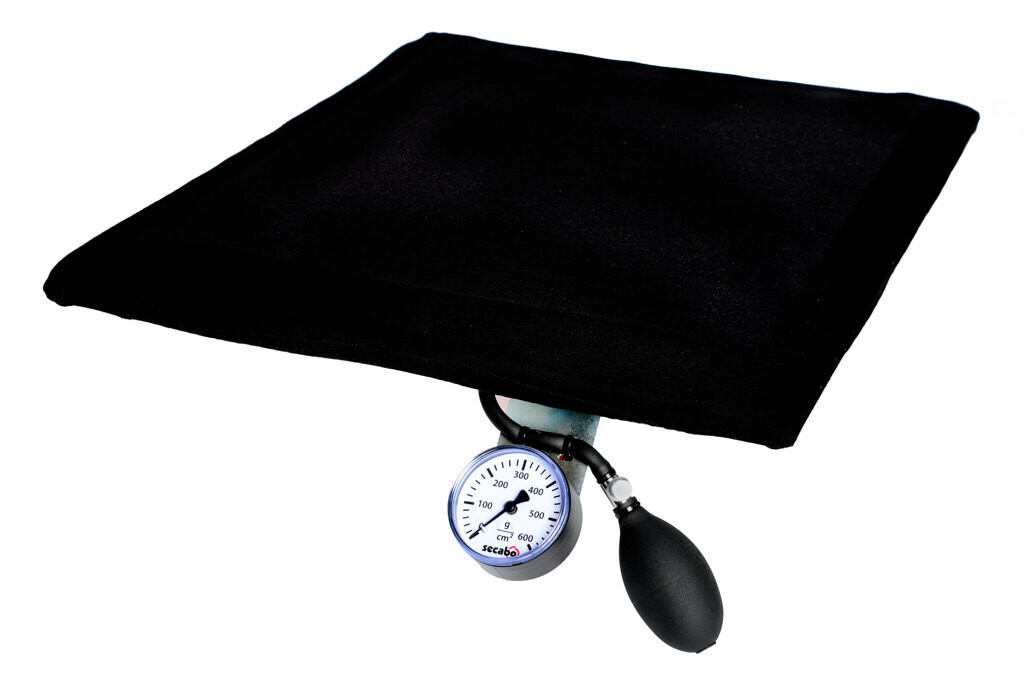

The membrane base plates from Secabo open up many new possibilities for using your Secabo Heat Press - especially for transfer objects with large differences in height and unevenness. Many old and almost all new Heat Press models are suitable for retrofitting with the passive membrane base plates. The membrane can be easily inflated using a small blower ball. This allows the maximum equalisation height of the membrane for a transfer to be determined. The contact pressure is set as usual on the Heat Press, for example using a handwheel on the heating plate. When the Heat Press is closed, a pressure gauge reliably indicates the current contact pressure - in grams per square centimetre. During the pressing process, the pressure can be fine-tuned using the blower ball and a release valve. Secabo's membrane underplates not only allow you to read off the actual transfer pressure, but also to set it again and again in a reproducible manner. The membrane base plates for work surfaces of 38cm x 38cm and 40cm x 50cm. The membrane plates themselves have dimensions of 45cm x 45cm or 47cm x 57cm. They can be mounted directly on the bases of many Secabo Heat Presses and are also suitable for Secabo's well-known quick-change systems and slide extensions.
| Technology: | Membrane plate |
|---|
Login
| Abmessungen | 45cm x 45cm x 5,5cm |
| Druckeinstellung | Einstellung an der Transferpresse, Feinjustierung über Gebläseball und Ablassventil |
| Größe Arbeitsfläche | 38cm x 38cm |
| Lieferumfang | Membran-Unterplatte mit Anschraubsockel, Befestigungsmaterial |
| max. Arbeitsdruck | je nach Leistungsdaten der Transferpresse bis 500 g/cm² |
| max. Temperatur | 230 °C |
| Umgebung | 5°C - +35°C/ 30% - 70% Luftfeuchtigkeit |
| Gewicht ohne Verpackung | 10 kg |
| Gewicht mit Verpackung | 10,00 kg |
| Marke | Secabo |
