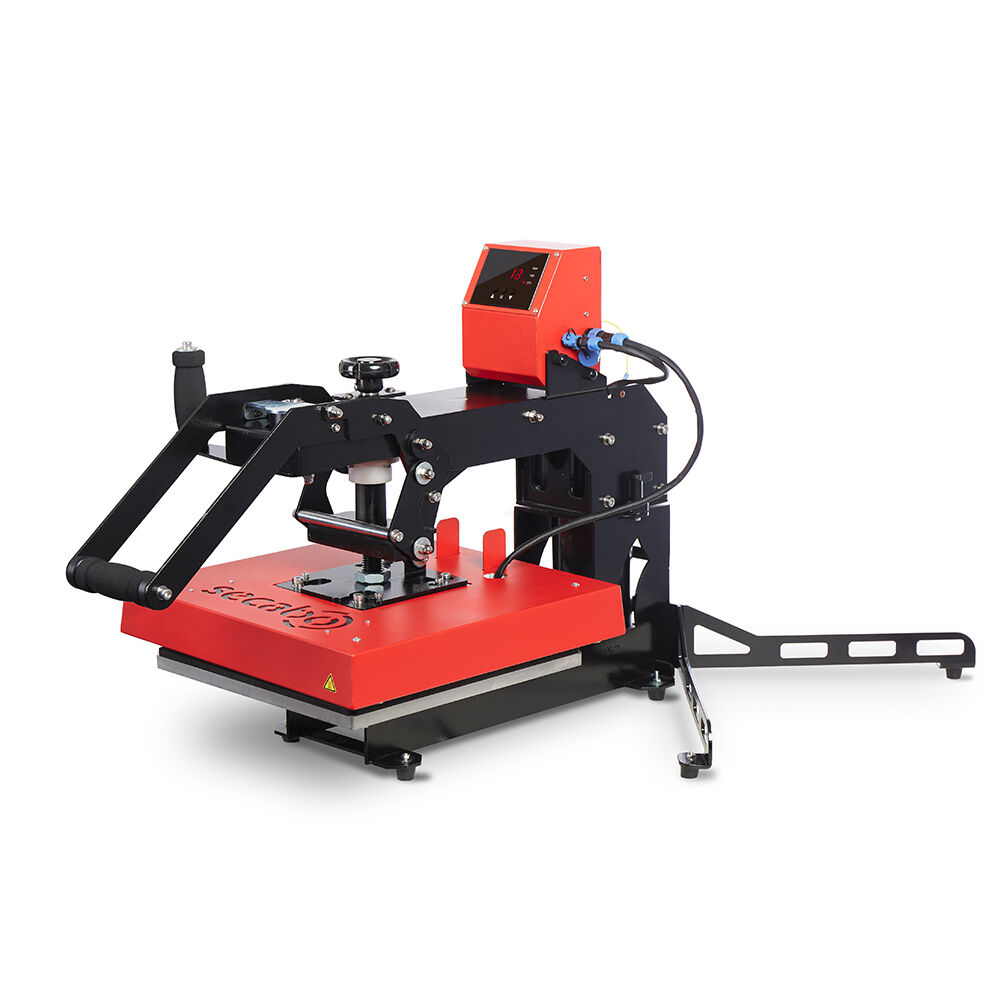

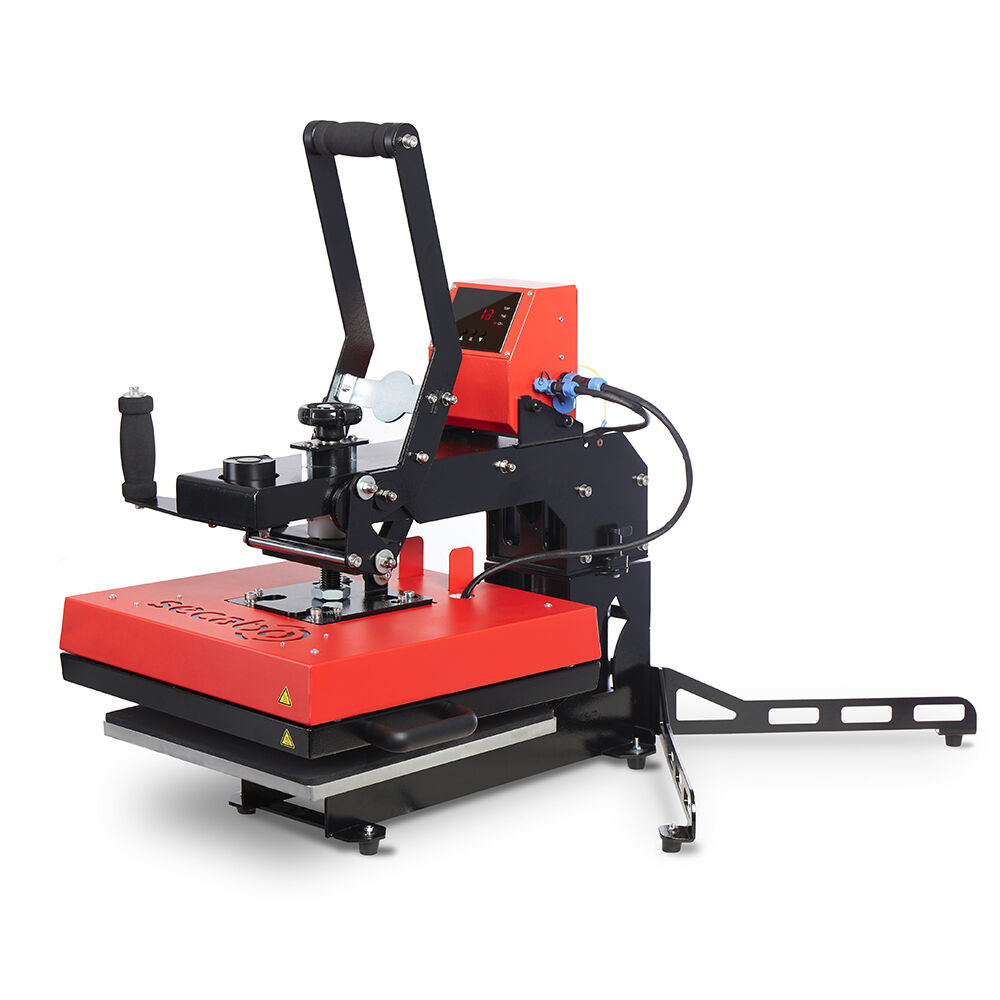

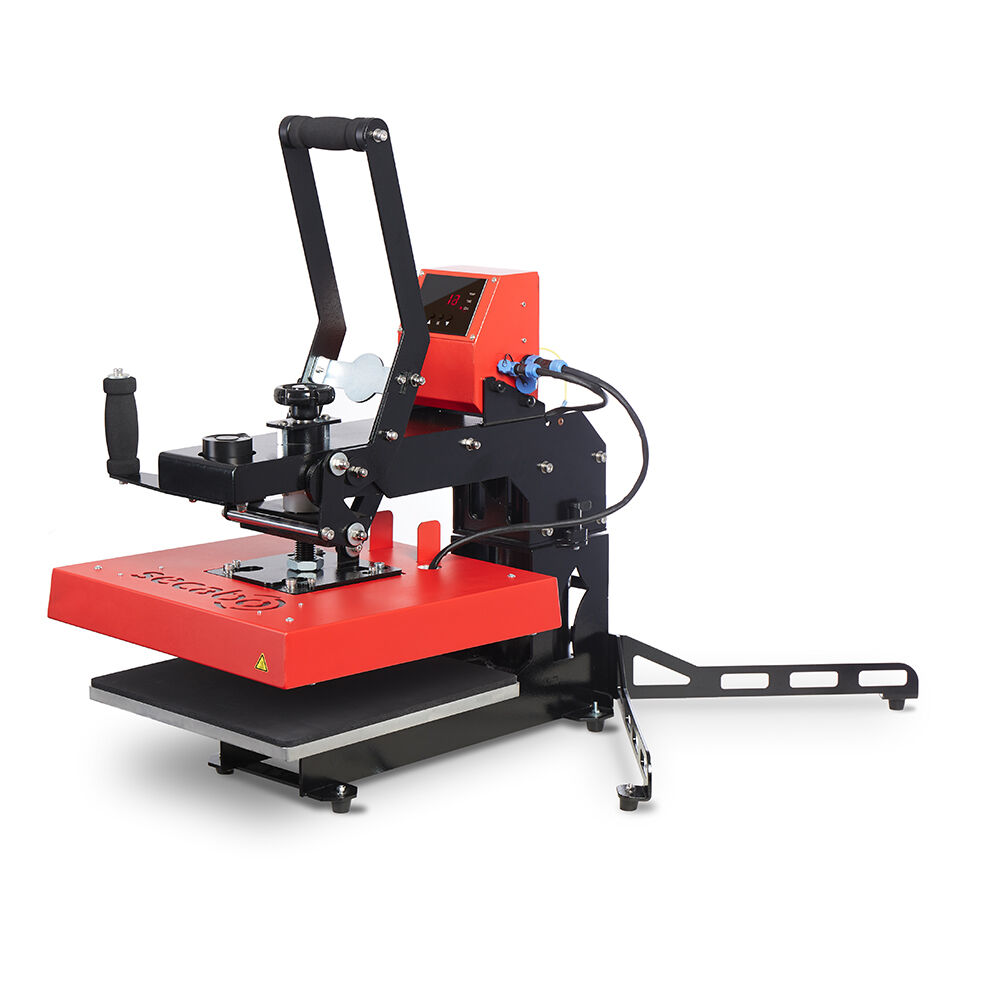

Secabo TS5 LITE Energy Saver modular swing press 38cm x 38cm
€1,700.51
16 Available immediately, delivery time: 1-3 days
Secabo provides all operating instructions and manuals online in several languages:
In the Secabo Media Centre you will find product photos and many other materials in original resolution.
Secabo TS5 LITE Energy Saver - The ultimate upgrade in energy efficiency and transfer convenience
Increase energy efficiency and revolutionise your operation with the Secabo TS5 LITE Energy Saver. Equipped with the ground-breaking Energy Saver ES5 heating plate, this Heat Press presents an unprecedented fusion of advanced technology and sustainability, specifically designed for modern textile finishing and transfer printing operations.
Optimum energy efficiency meets elite performance:
The TS5 LITE Energy Saver integrates the innovative ES5 heating plate with additional insulation, which significantly reduces standby energy consumption and promises savings of up to 80%. In operation, this heating plate is over 30% more efficient than conventional models, which not only results in remarkable energy savings, but also minimises the environmental footprint of your operation.
User-centred safety and ease of use:
The specially designed cover bonnet protects your employees from potential burns while reducing energy consumption. Operating the heating plate is easy, even without the cover, and a handwheel allows precise adjustment of the contact pressure for a quick start.
The LITE Heat Presses offer everything that makes textile transfers with Secabo so convenient. All professional applications of common heat transfer processes such as flock foils, flex foils, sublimation, DTF transfers, etc. are of course possible. The Secabo TS5 LITE can be optionally equipped with interchangeable plates in various formats - including a membrane base plate, a quick-change system and a slide extension for use as a double-plate press.
- Heat Press opens automatically after the time has elapsed
- Digital controller for temperature and time
- Temperature and time can be set on the controller using arrow keys
- Modular design, components can be easily exchanged
- Easily adjustable contact pressure
- High-quality heating plate with additional protective plate
- Suitable for all common transfer processes

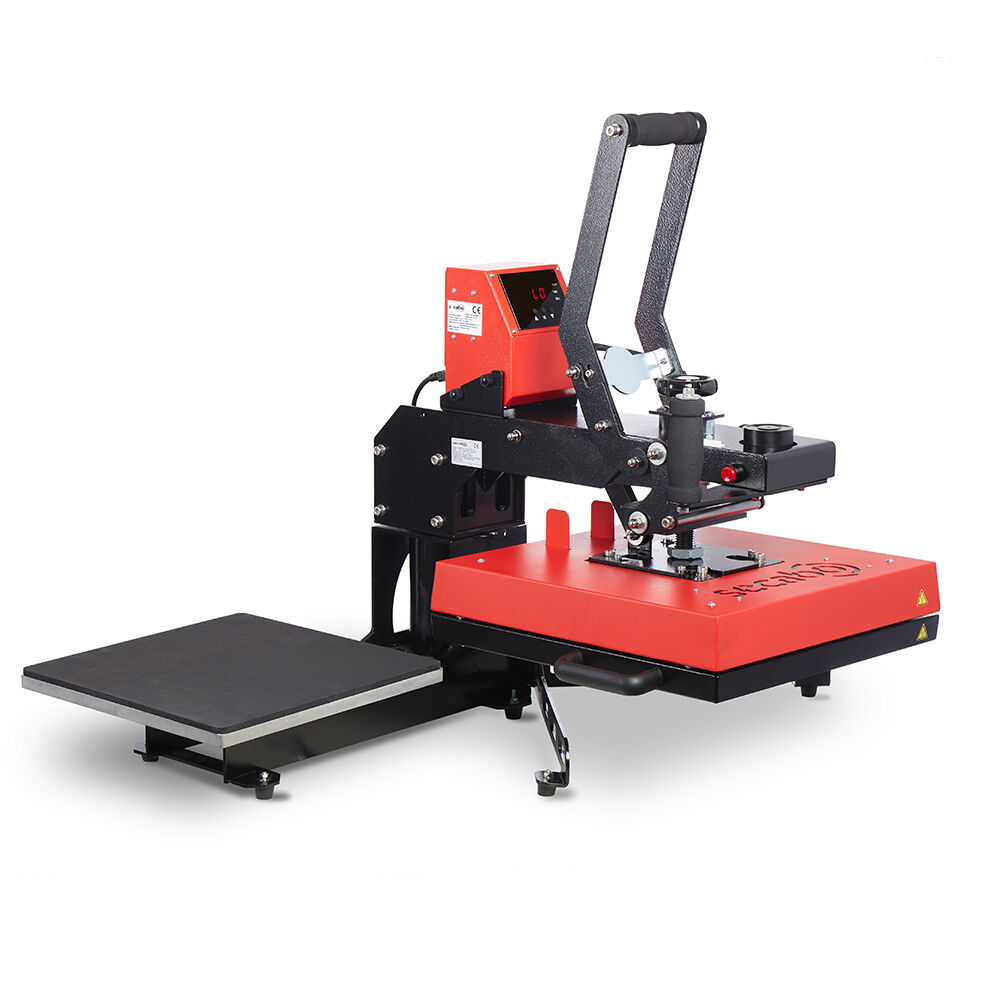

- Can be retrofitted with accessories such as exchangeable plates, slide extension or membrane heating plate for even greater productivity.
| Application: | Acar, Chromaluxe, Sublimade, Textile, White toner |
|---|---|
| Features: | 38x38cm heating plate |
| Series: | TS5 |
| Technology: | Energy Saver, Lite |
| Work surface size | 38cm x 38cm |
| Scope of delivery | Mechanical base, heating plate and base plate, LITE controller box, C13 power cable, tools, operating instructions |
| Pressure setting | Height adjustment of the heating plate using handwheel |
| Max. contact pressure | 250 g/cm² |
| Max. temperature | 225 °C |
| Max. time preset | 999 s |
| Power supply | AC voltage 230V / 50Hz - 60Hz, 1.80kW |
| Environment | +5°C - +35°C / 30% - 70% humidity |
| Options | Quick-change system, various exchangeable plates, slide extension, membrane base plate, TB7 thermobase |
| Weight with packaging | 65.60 kg |
| Brand name | Secabo |
