Secabo TCB LITE Ball Press
€698.53
2 Available immediately, delivery time: 1-3 days
Secabo provides all operating instructions and manuals online in several languages:
In the Secabo Media Centre you will find product photos and many other materials in original resolution.
Play in the top flight with Secabo’s new ball press

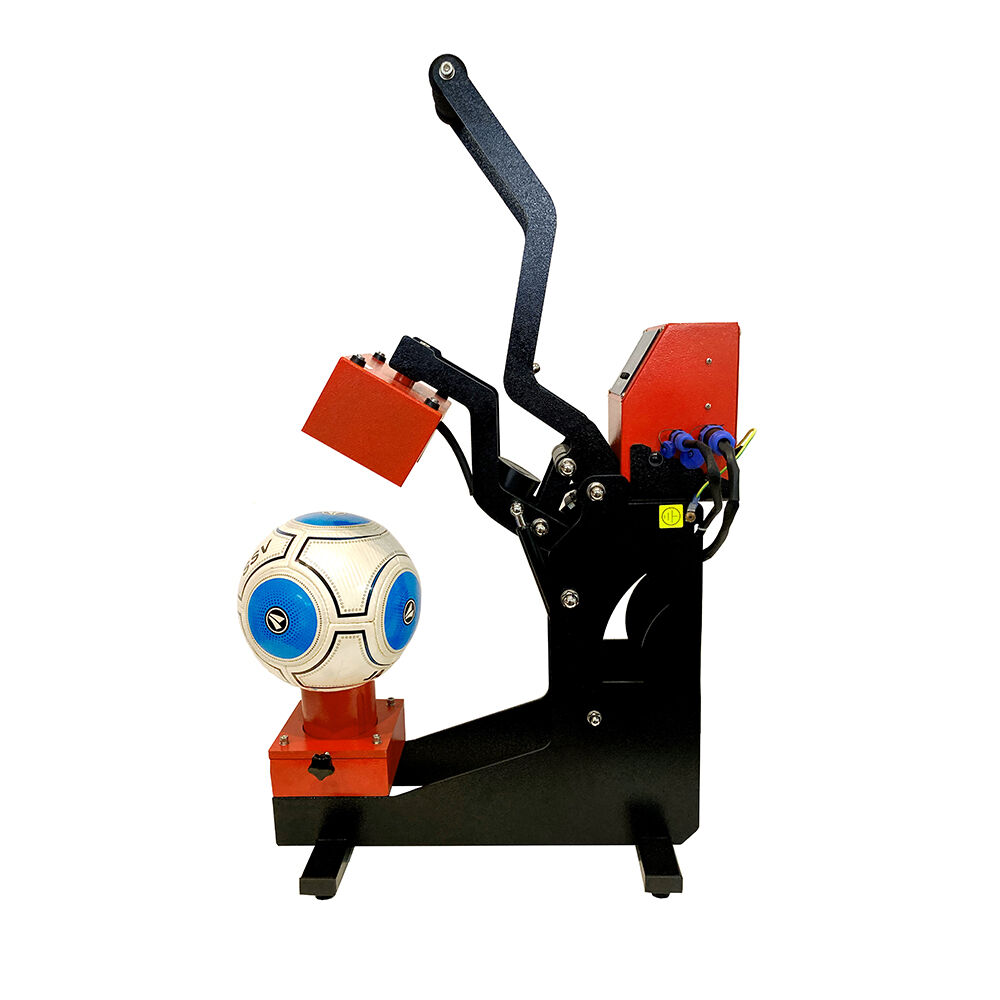

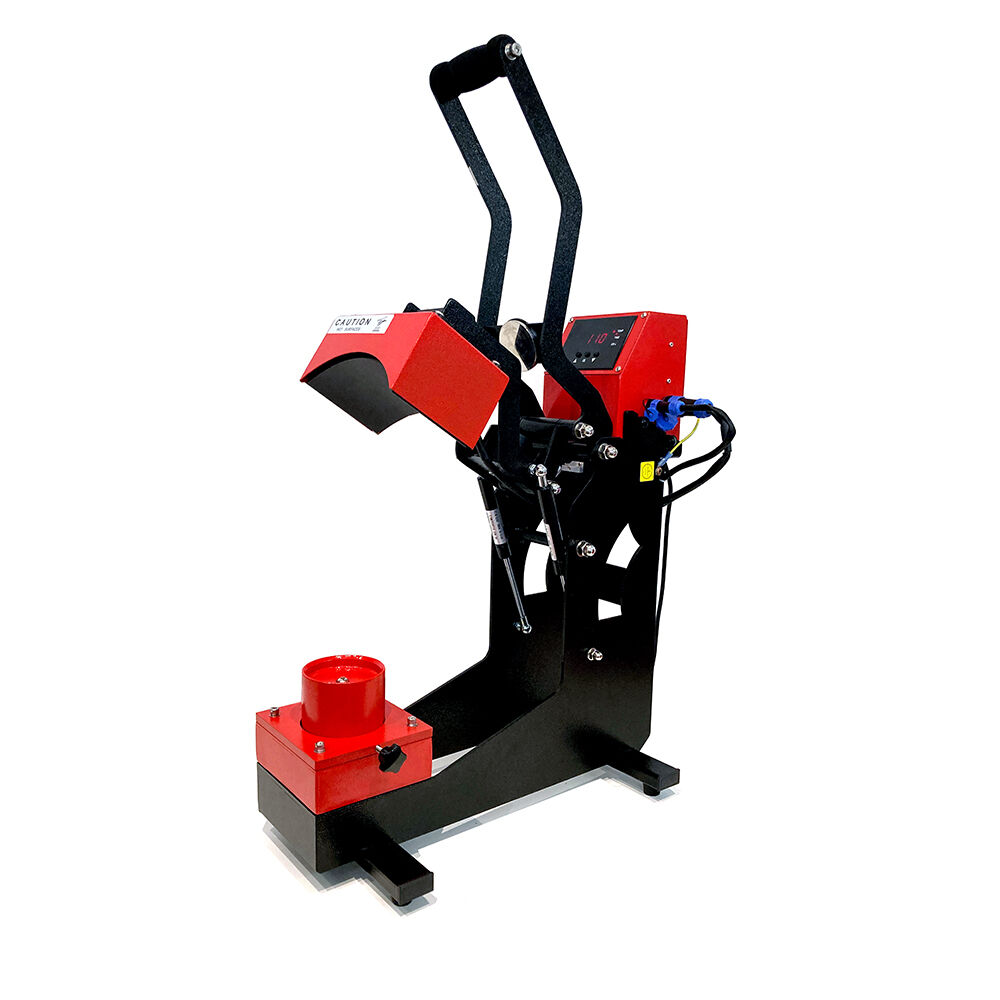

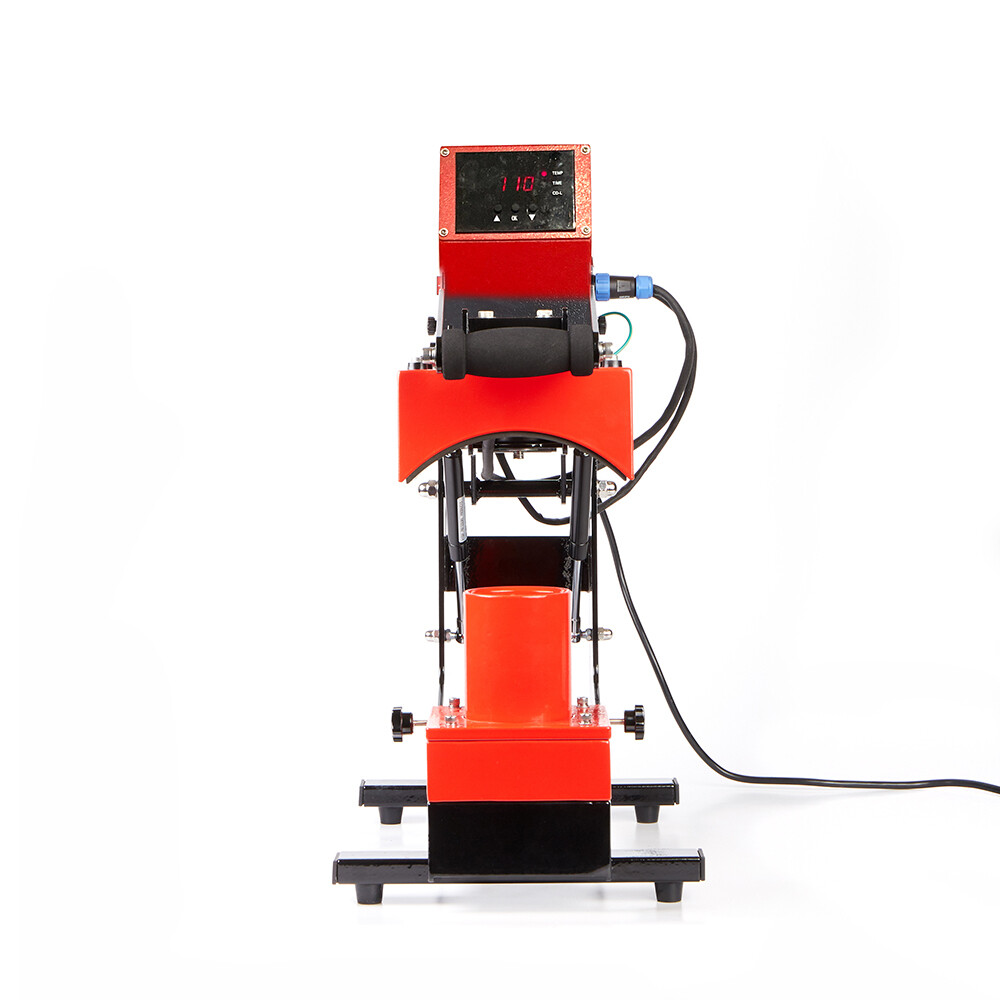

Experience top performance and maximum convenience with the Secabo TCB LITE ball press – this innovative Heat Press opens up a world of new possibilities and flexibility for customising inflatable sports balls, such as synthetic leather footballs, handballs and basketballs (not tennis balls). With logos, players’ names or numbers, you can create personalised souvenirs and prizes for events or giveaways.
The TCB LITE ball press, which opens automatically, features a digital temperature and time display and is suitable for all standard heat transfer processes. The specially shaped heating plate fits almost all ball sizes and shapes, whilst the adjustable cylinder ensures precise pressure. The same temperature of 113 °C for 8 seconds can be applied to all balls to avoid damaging sensitive plastics or synthetic leather. A transfer size of up to 5 cm x 8 cm is recommended to ensure a smooth application on the curved surface of the ball.
The TCB LITE ball press offers convenience and supports all professional applications of common heat transfer processes such as flock foils, flex foils, sublimation, inkjet flex, etc.
- Digital controller for temperature and time
- Adjustable temperature (max. 220°C) and time
- Easily adjustable contact pressure
- High-quality heating plate with additional protective plate
- Suitable for all common transfer processes
- Specially shaped heating plate for almost all ball sizes and shapes
- Adjustable cylinder for precise pressure on different ball sizes
- Ideal for producing personalised souvenirs and prizes for events or as giveaways
| Application: | Balls |
|---|---|
| Features: | auto open press |
| Series: | TCB |
| Technology: | Lite |
| Dimensions (unfolded) | 32 x 92 x 70 cm |
| Dimensions when closed | 32 x 71 x 60 cm |
| Worktop size | 5 cm x 8 cm |
| Contents | Mechanical base with heating element, LITE controller, C13 IEC power cable, tools, user manual |
| Pressure adjustment | Height adjustment of the heating plate via handwheel |
| Max. contact pressure | 250 g/cm² |
| Max. temperature | 250 °C |
| Max. timer setting | 999 s |
| Max. opening angle | 40° |
| Power supply | AC 230 V / 50 Hz – 60 Hz, 1.80 kW |
| Ambient conditions | +5°C – +35°C / 30% – 70% relative humidity |
| (Heat Press) Weight excluding packaging | 25 kg |
| Weight including packaging | 31.60 kg |
| Brand | Secabo |
