Secabo TC5 LITE modular Heat Press 38cm x 38cm
Secabo TC5 LITE modular Heat Press 38cm x 38cm
Secabo TC5 LITE modular Heat Press 38cm x 38cm
Secabo TC5 LITE modular Heat Press 38cm x 38cm
Secabo TC5 LITE modular Heat Press 38cm x 38cm
Secabo TC5 LITE modular Heat Press 38cm x 38cm
Secabo TC5 LITE modular Heat Press 38cm x 38cm
Secabo TC5 LITE modular Heat Press 38cm x 38cm
Secabo TC5 LITE modular Heat Press 38cm x 38cm
(5% saved)
Secabo TC5 LITE modular Heat Press 38cm x 38cm

Secabo TC5 LITE modular Heat Press 38cm x 38cm

€913.44

% €961.52 (5% saved)

21 Available immediately, delivery time: 1-3 days

Product number: 109.005.22
GTIN/EAN: 4251486238685
Weight: 40,60 kg

Secabo provides all operating instructions and manuals online in several languages:

German
English
Français
Español
Italiano

In the Secabo Media Centre you will find product photos and many other materials in original resolution.

Top performance and high convenience with the Secabo LITE series - With this new development of the successful Secabo TC5 toggle press, Secabo is launching a lucrative modular system on the market that opens up a wide range of new possibilities for users. Added flexibility thanks to easily interchangeable components - in short, a basic product with great upgrade options. The new LITE models therefore have the advantage of being able to retrofit individual base plates or heating platens at low cost and easily replace components as required. The TC5 LITE Heat Press from Secabo is a modular, automatically opening toggle press. The user does not have to wait next to the press during transfers, but can carry out other activities. Once the set time has elapsed, the press opens automatically and announces this three seconds in advance with an acoustic signal. The pressing process can be interrupted at any time at the touch of a button - for example to pre-press textiles. The temperature and pressing time are conveniently preselected using a digital controller. The contact pressure is set using a large handwheel on the top of the heating plate. The TC5 LITE Heat Press, with a working surface of 38cm x 38cm, has an additional cover plate on the heating plate to protect the user from burns. The design of the TC5 LITE is fully modular; the control unit, heating plate, base plate and base frame can be removed and replaced in a few simple steps. This also allows the use of other heating plates, for example. The LITE Heat Presses offer everything that makes textile transfers with Secabo so convenient. All professional applications of common heat transfer processes such as flock foils, flex foils, sublimation, inkjet flex, etc. are of course possible. The Secabo TC5 LITE can be optionally equipped with interchangeable plates in various formats - including a membrane base plate, a quick-change system and a slide extension for use as a double plate press. You also have the option of upgrading the TC5 LITE to our Secabo TC-SMART series.
Application: Textile
Features: 38x38cm heating plate, auto open press
Series: TC5
Technology: Lite
Dimensions to be confirmed 41 cm x 93 cm x 67 cm
Dimensions when closed 41 cm x 57 cm x 73 cm
Worktop size 38 cm × 38 cm
Contents of the package Mechanical base, heating plate and base plate, LITE controller box, C13 IT cable, tools, user manual
Print settings Height adjustment of the heating plate using a handwheel
Maximum contact pressure 250 g/cm² g/cm²
Max. temperature 225 °C °C
Max. delay time 999 s
Max. folding angle 40 °
Power supply AC voltage 230 V / 50 Hz – 60 Hz, 1.80 kW
Surroundings +5°C – +35°C / 30% – 70% relative humidity
Options Quick-change system, various replacement plates, slide extension and diaphragm base plate
Weight excluding packaging 32 kg
Weight including packaging 40.60 kg
Brand Secabo

Secabo TC5 LITE: The reliable professional standard for your business.

Maximale Prozesssicherheit trifft auf meisterhafte Ergonomie – für perfekte Transferergebnisse dank automatischer Öffnung und modularer Erweiterbarkeit.

Jetzt Werkstatt professionell ausrüsten
DIE SECABO TC5 LITE

Everything that helps your business grow

Auto-Open Funktion

Öffnet nach Ablauf des Timers automatisch – für entspanntes Arbeiten ohne Textilschaden.

Modular & Flexibel

Basisplatten & Schnellwechsler in Sekundenschnelle werkzeuglos austauschen.

Ergonomischer Kniehebel

Hoher Anpressdruck bei minimalem körperlichem Kraftaufwand.

Bis zu 225 °C & 38×38 cm

Gleichmäßige Hitzeverteilung für DTF, Flex, Flock und Sublimation.

AUTO-OPEN

Safety & efficiency thanks to automatic opening

Nie wieder ruiniertes Textil durch Ablenkung. Nach Ablauf der eingestellten Zeit öffnet die TC5 LITE automatisch und signalisiert das Ende des Vorgangs akustisch.

DIGITALSTEUERUNG

Precise digital control for all transfer processes

Exakte Temperatur- und Zeitkontrolle über das übersichtliche digitale Display. Perfekt abgestimmt für filigrane DTF-Transfers, Flexfolien und Sublimation.

MODULARITÄT

Modular scalability for growing workloads

Rüste deine TC5 LITE jederzeit mit Schnellwechslern, verschiedenen Wechselplatten oder Membran-Unterplatten auf – ganz ohne teuren Neukauf.

YOW! LOYALTY-PROGRAMM

Buy press products at YOW! and save money in the long run!

Sichere dir jetzt deine Secabo TC5 LITE und erhalte automatisch exklusive Sonderkonditionen: 5 % Rabatt auf alle DTF-Transfers und 5 % Rabatt auf das gesamte Textilsortiment bei YOW! Dein Rabatt gilt sofort – für die erste und jede weitere Bestellung.

Weitere Informationen zum Treueprogramm

5% off DTFs when you buy a Heat Press

With DTF (Direct-to-Film) transfers, you’ll set new standards in terms of flexibility and quality. These transfers allow you to create detailed, full-colour prints on almost any type of fabric – whether light or dark. Simply press, peel off, and you’re done!

Order DTFs now

5 per cent off textiles when you buy a Heat Press

Discover a huge selection of high-quality textiles and promotional items, specially optimised for further processing. Whether T-shirts, hoodies, workwear or bags – our products offer the perfect surface for DTF transfers, flex foils and sublimation. Provide your customers with long-lasting quality and maximise your printing results

Order textiles now

Ready to take your first step into the world of professional finishing?

Hol dir die Secabo TC5 LITE – verlässliche Auto-Open Technik, modular erweiterbar und extrem wirtschaftlich.

Jetzt Secabo TC5 LITE bestellen

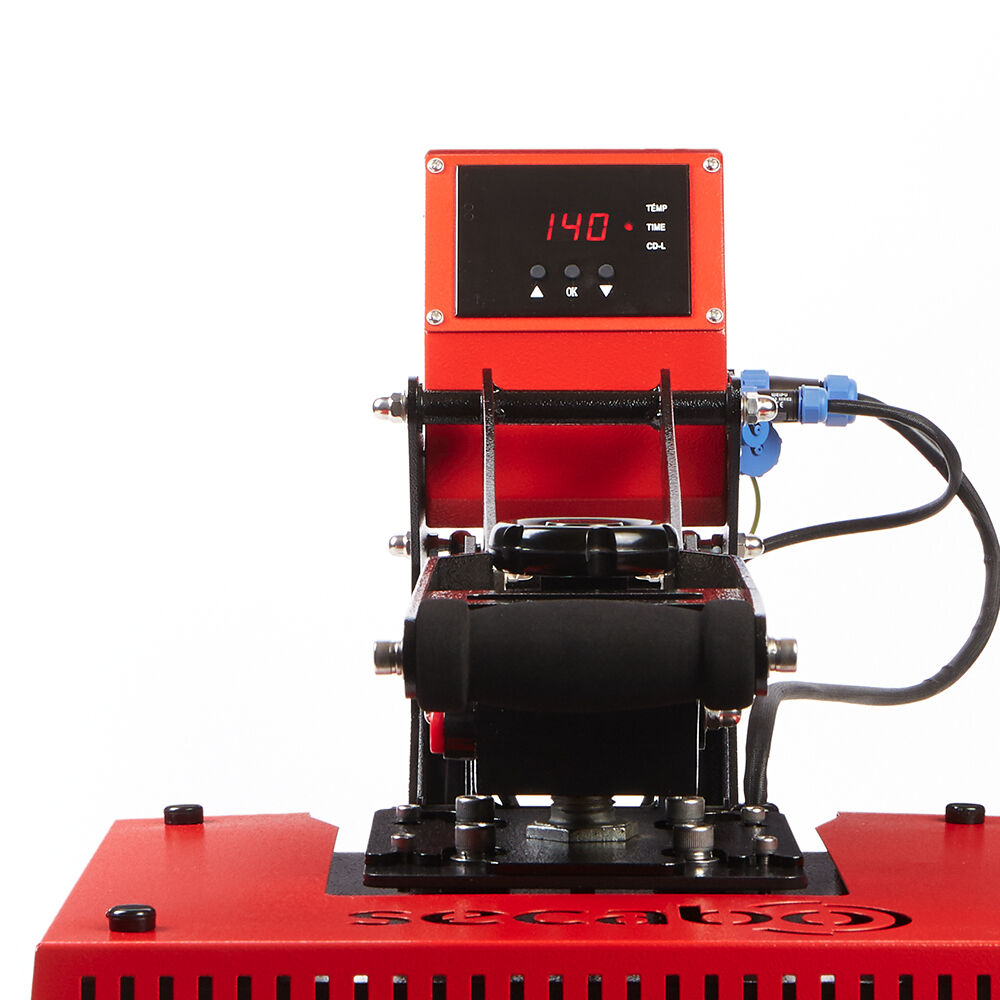

Precision digital controller
Guaranteed precise settings for temperature and pressing time, ensuring completely reproducible finishing results. Enter Button Text ...
Automatic opening function (Auto-Open)
Opens the press fully automatically once the timer has run out, reliably protects textiles from burning and makes your day-to-day production work easier. Enter Button Text ...
Ergonomic pressure adjustment
Enables stepless adjustment of the contact pressure via a handwheel, as well as easy closing with maximum force transmission. Enter Button Text ...
High-performance heating plate
Ensures heat is distributed evenly across the entire surface – the perfect basis for intricate DTF transfers and films. Enter Button Text ...
Tool-free changeover system
Enables quick replacement with smaller interchangeable plates, membrane base plates or the retrofitting of a slide extension. Enter Button Text ...

“The TC5 LITE is our undisputed value-for-money champion in the professional range. It offers exactly the same modular flexibility and reliable auto-opening feature as the SMART series, but deliberately omits app functions. A robust, no-fuss, classic workhorse that pays for itself from day one.”

Andreas Steinert YOW! Sales Team
