Secabo TC5 SMART modular Heat Press 38cm x 38cm with Bluetooth
Overview: Secabo TC7 SMART modular Heat Press 40cm x 50cm with Bluetooth

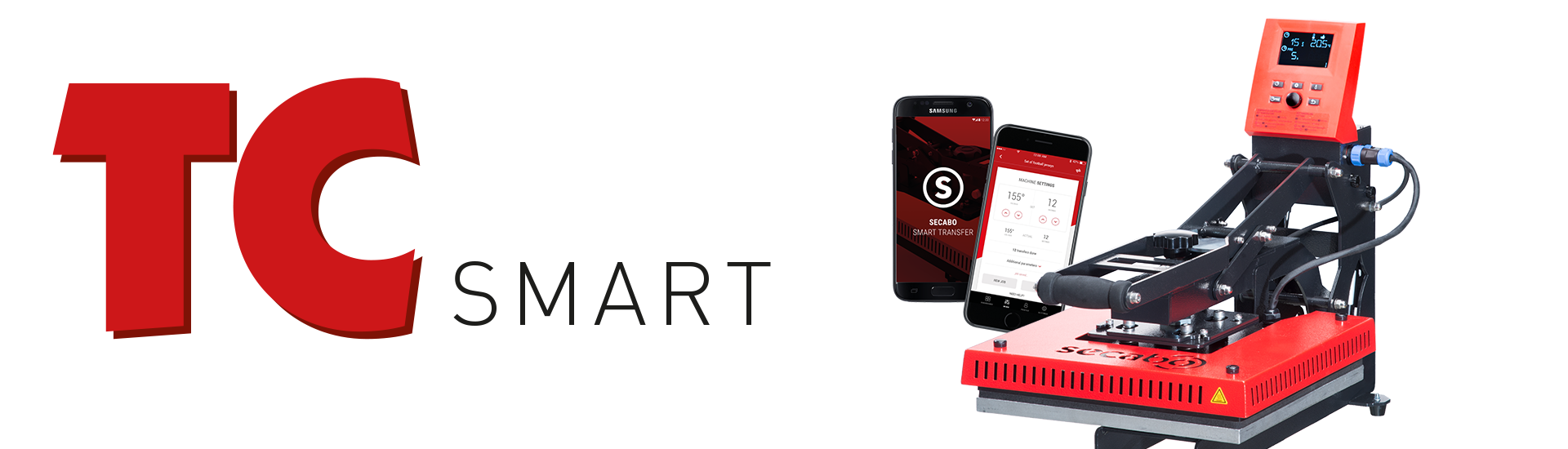

The innovative Secabo TC7 SMART Heat Press revolutionises heat transfer technology and offers outstanding performance. This latest evolution of the popular Secabo TC7 automatic toggle press features a ground-breaking Bluetooth interface which, in combination with the free Secabo Smart Transfer app, enables easy control of the press. Users can effortlessly enter the fabric type and transfer material to instantly retrieve the optimum settings for temperature, time and pressure. Additional functions such as the calculation of heat-up times and warnings make the app an indispensable tool for all common heat transfer processes. With a generous work surface of 40 cm x 50 cm, the Secabo TC7 SMART is user-friendly and robust in daily use. The modular design enables quick and easy replacement of interchangeable plates in various formats as well as an efficient quick-change system and slide extension.

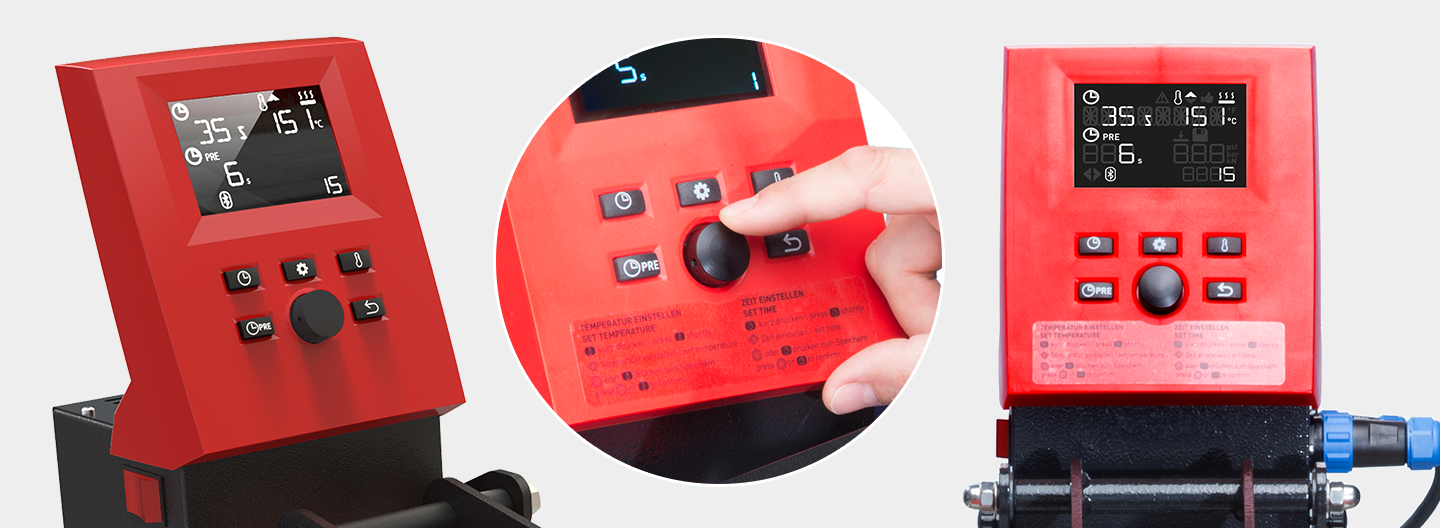

Intelligent display functions and intuitive control concept
Our SMART models are equipped with new electronics developed on the basis of Secabo's extensive industry expertise. For the first time, the digital controller of the automatically opening toggle presses has a Bluetooth interface and can be controlled via the free Secabo Smart Transfer app. The controller's revised features are another innovation. In addition to familiar settings such as temperature and time, the range of functions has been expanded to include settings for pre-pressing, a counting function, sleep and auto-off mode, 10 memory locations for transfer parameters and many other features. The control concept has been completely revised to provide the user with even better press handling - the new rotary push button and the large display make a significant contribution to this.
| Application: | Chromaluxe, Textile, White toner |
|---|---|
| Features: | 38x38cm heating plate, auto open press |
| Series: | TC5 |
| Technology: | Bluetooth, Smart |
| Abmessungen offen | 41cm x 93cm x 67cm |
| Abmessungen geschlossen | 41cm x 57cm x 73cm |
| Größe Arbeitsfläche | 38cm x 38cm |
| Lieferumfang | Mechanische Basis, Heizplatte und Basisplatte, Controller Box, C13 Kaltgeräte-Anschlusskabel, Werkzeuge, Bedienungsanleitung |
| Druckeinstellung | Höhenverstellung der Heizplatte mittels Handrad |
| max. Anpressdruck | 250 g/cm² |
| max. Temperatur | 225 °C |
| max. Zeitvorwahl | 999 s |
| max. Klappwinkel | 40 ° |
| Stromversorgung | Wechselspannung 230V / 50Hz - 60Hz, 1,80kW |
| Umgebung | +5°C - +35°C / 30% - 70% Luftfeuchtigkeit |
| Gewicht ohne Verpackung | 32 kg |
| Gewicht mit Verpackung | 40,60 kg |
| Marke | Secabo |
