Secabo TC7 SMART modular Heat Press 40cm x 50cm with Bluetooth
Product number:
109.007.15
GTIN/EAN:
4251486217703
Weight:
46,60 kg

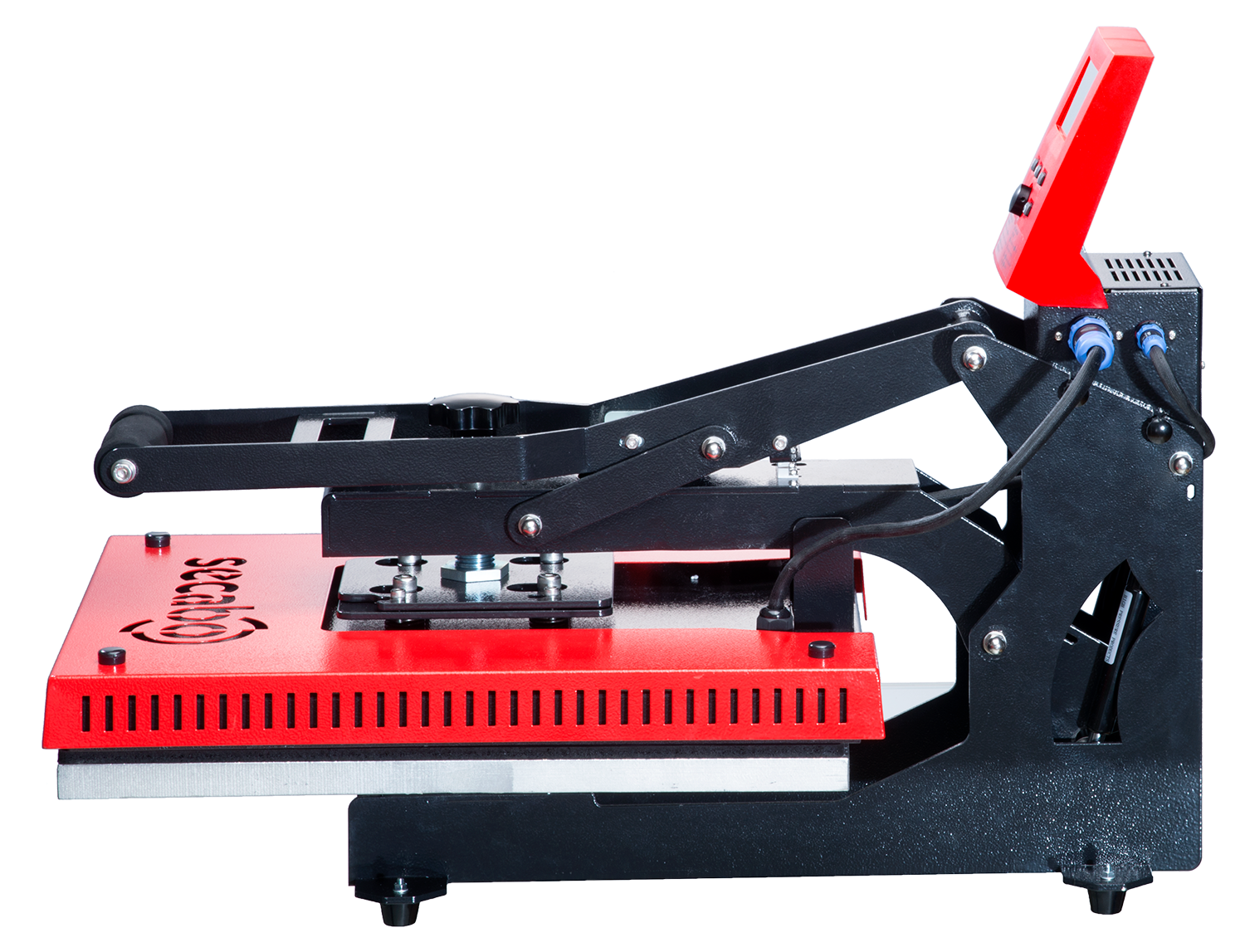

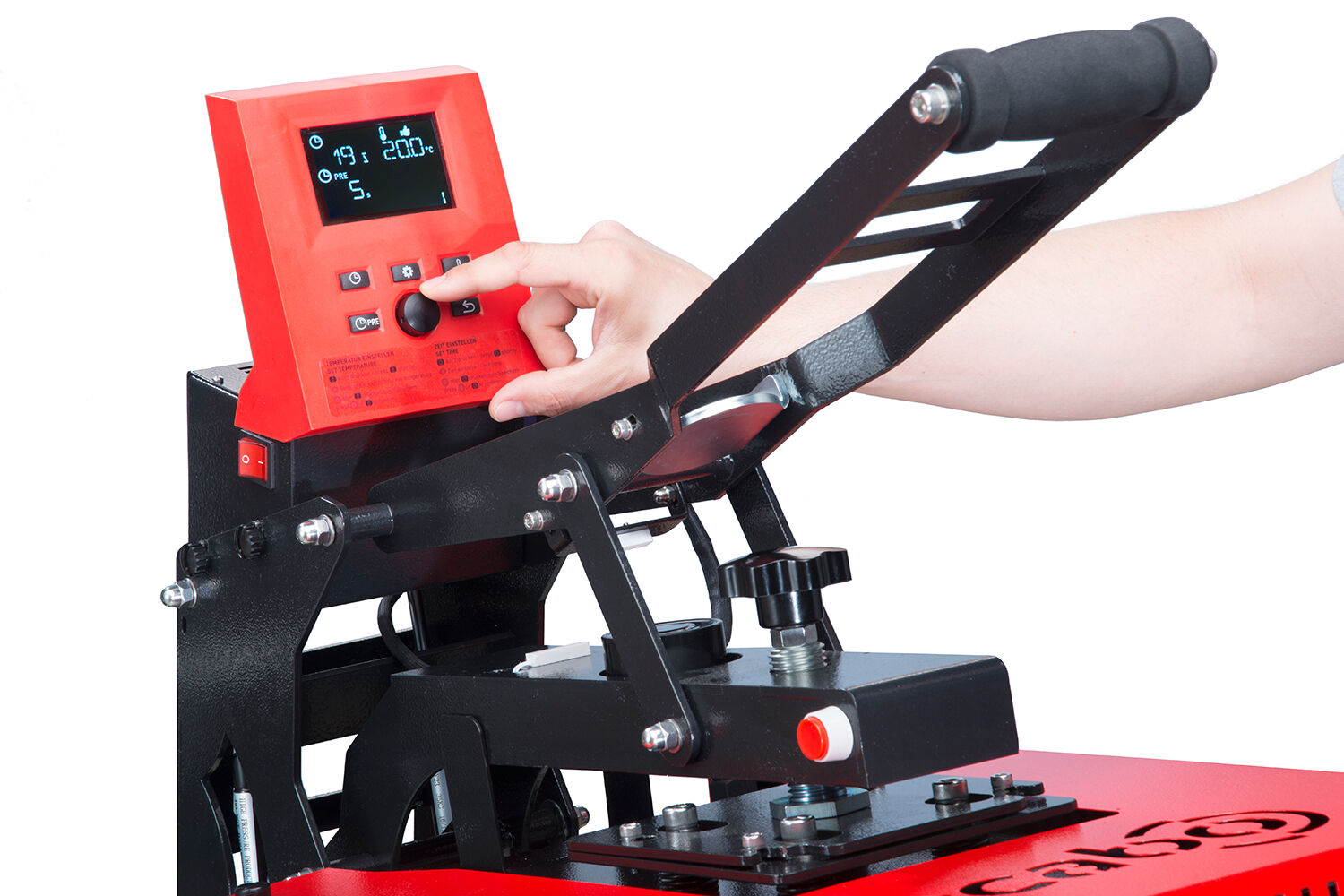

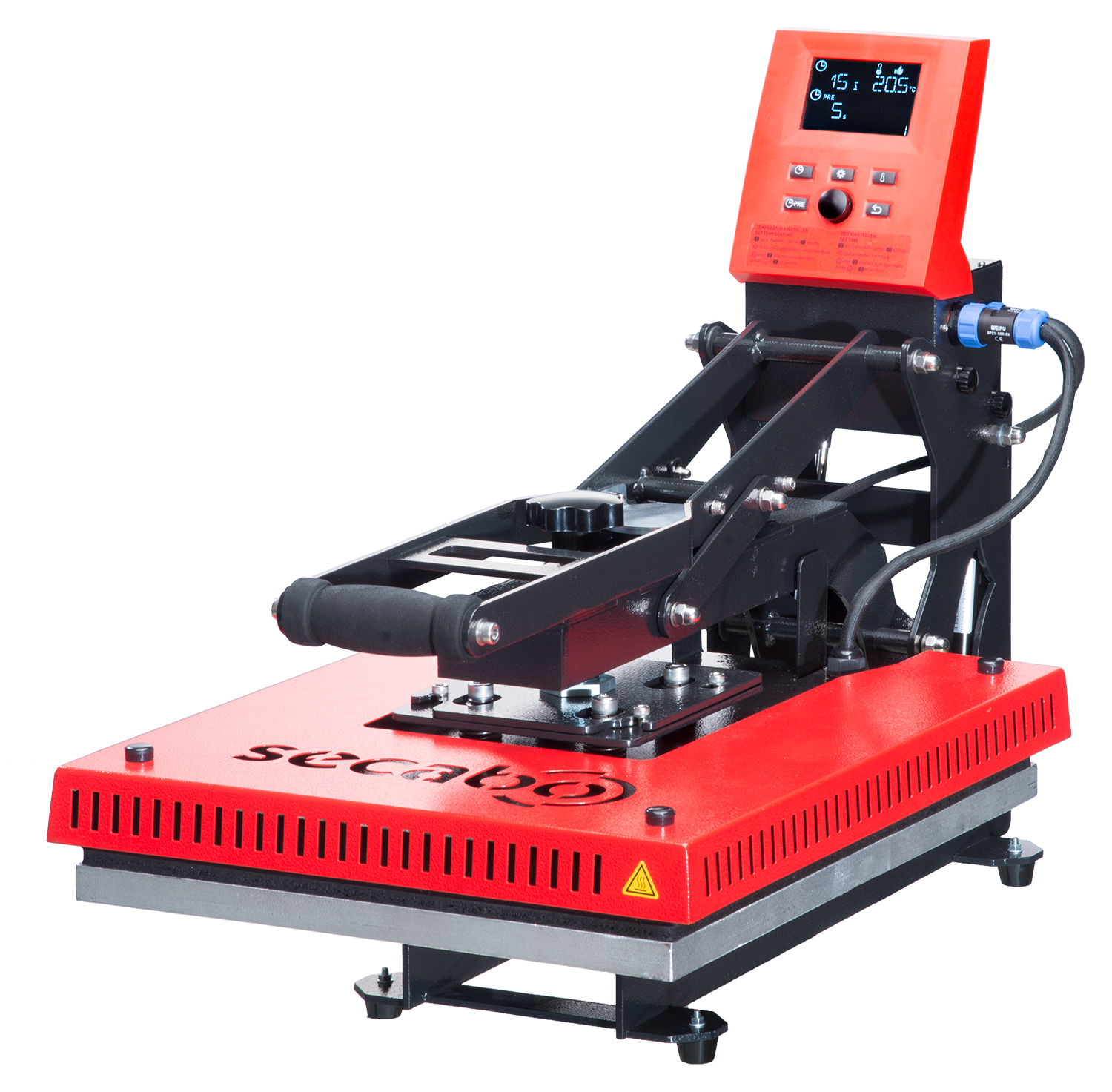

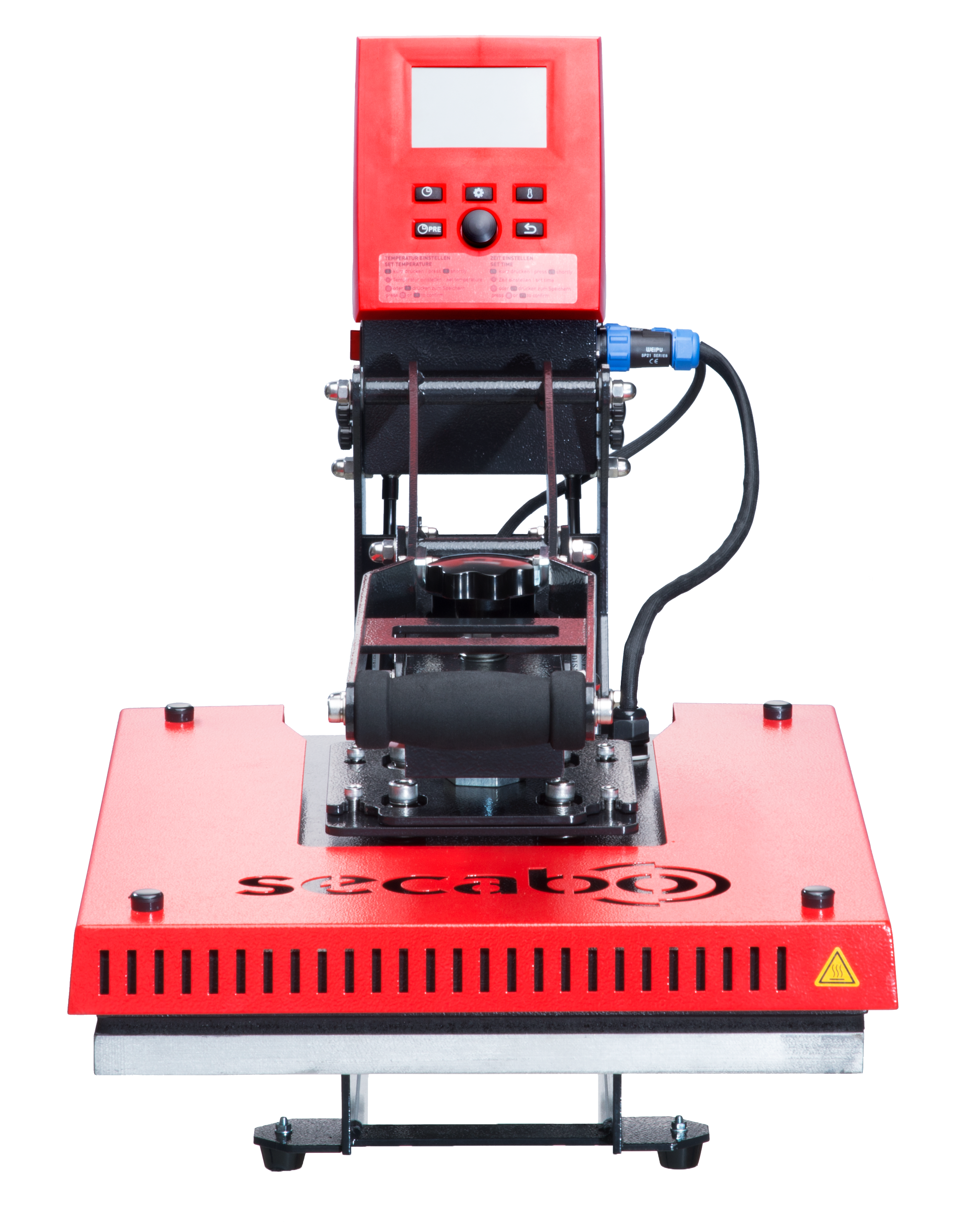

Secabo's new TC7 SMART Heat Press opens up innovative ways to achieve even better performance. This new development of the successful Secabo TC7 automatic toggle press brings a world first to the market, opening up a wide range of new possibilities for users: For the first time, the controller of the TC7 SMART is equipped with a Bluetooth interface which, with the free Secabo Smart Transfer app, allows the press to be controlled while simultaneously accessing a comprehensive function database. For the user, this means: simply enter the fabric type and transfer material and the appropriate combinations for temperature, time and pressure can be called up. Additional functions such as the calculation of heat-up times and warning functions make the app a valuable aid for all common heat transfer processes. The new Secabo TC7 SMART Heat Press offers a working area of 40 cm x 50 cm, is easy to operate and robust during operation. The modular design allows quick and easy installation of interchangeable plates in various formats, quick-change system and slide extension.
| Application: | Chromaluxe, Textile, White toner |
|---|---|
| Features: | 40x50cm heating plate, auto open press |
| Series: | TC7 |
| Technology: | Bluetooth, Smart |
Login
| Abmessungen offen | 43cm x 93cm x 74cm |
| Abmessungen geschlossen | 43cm x 57cm x 75cm |
| Größe Arbeitsfläche | 40cm x 50cm |
| Lieferumfang | Mechanische Basis, Heizplatte und Basisplatte, Controller Box, C13 Kaltgeräte-Anschlusskabel, Werkzeuge, Bedienungsanleitung |
| Druckeinstellung | Höhenverstellung der Heizplatte mittels Handrad |
| max. Anpressdruck | 250 g/cm² |
| max. Temperatur | 225 °C |
| max. Zeitvorwahl | 999 s |
| max. Klappwinkel | 40 ° |
| Stromversorgung | Wechselspannung 230V / 50Hz - 60Hz, 2,0kW |
| Umgebung | +5°C - +35°C / 30% - 70% Luftfeuchtigkeit |
| Gewicht ohne Verpackung | 39 kg |
| Gewicht mit Verpackung | 46,60 kg |
| Marke | Secabo |
Bedienungsanleitung Media Center
