Secabo TD7 SMART
Secabo TD7 SMART
Secabo TD7 SMART
Secabo TD7 SMART
Secabo TD7 SMART
Secabo TD7 SMART
Secabo TD7 SMART
Secabo TD7 SMART
Secabo TD7 SMART

Secabo TD7 SMART

€2,673.93

1 Available immediately, delivery time: 1-3 days

Delivery to Germany: Secabo machines are available through our authorised dealers.

Product number
109.107.16
GTIN/EAN
4251486237022
Weight
146.60 kg
Secabo TD7 SMART

Product information "Secabo TD7 SMART"

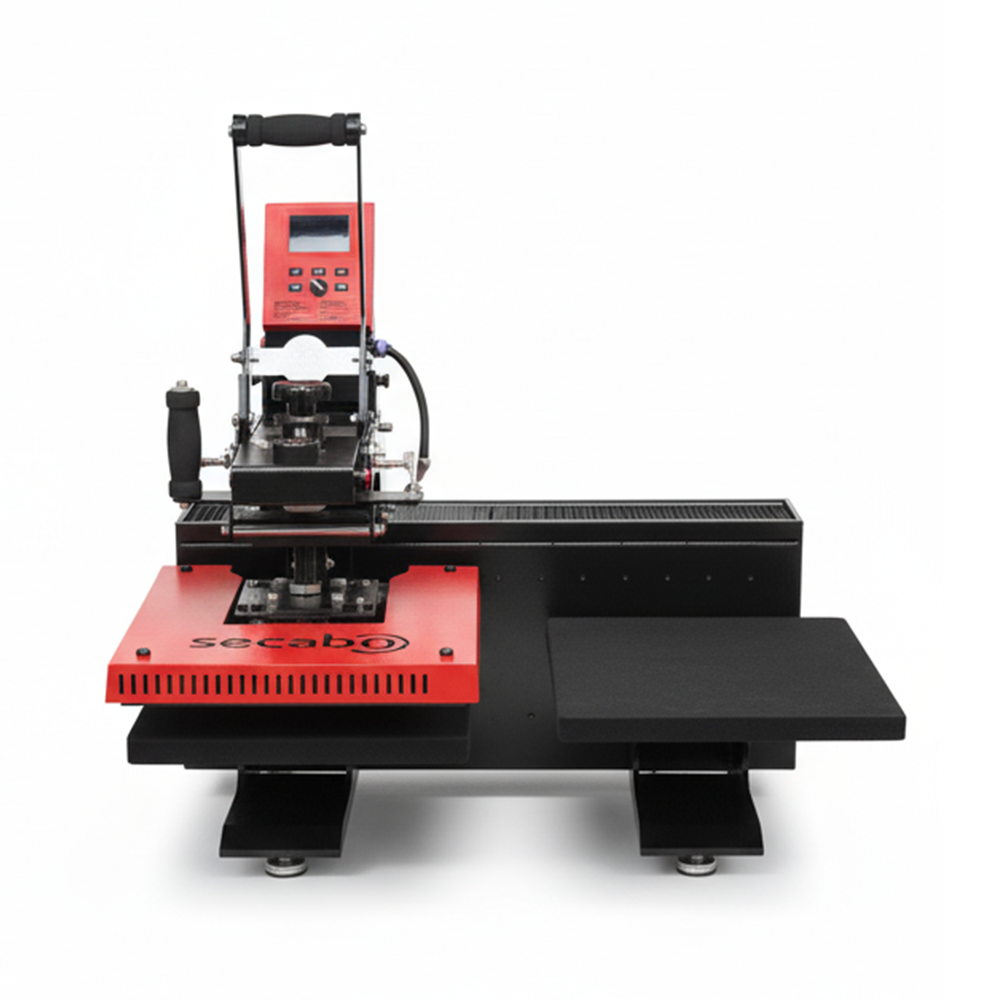

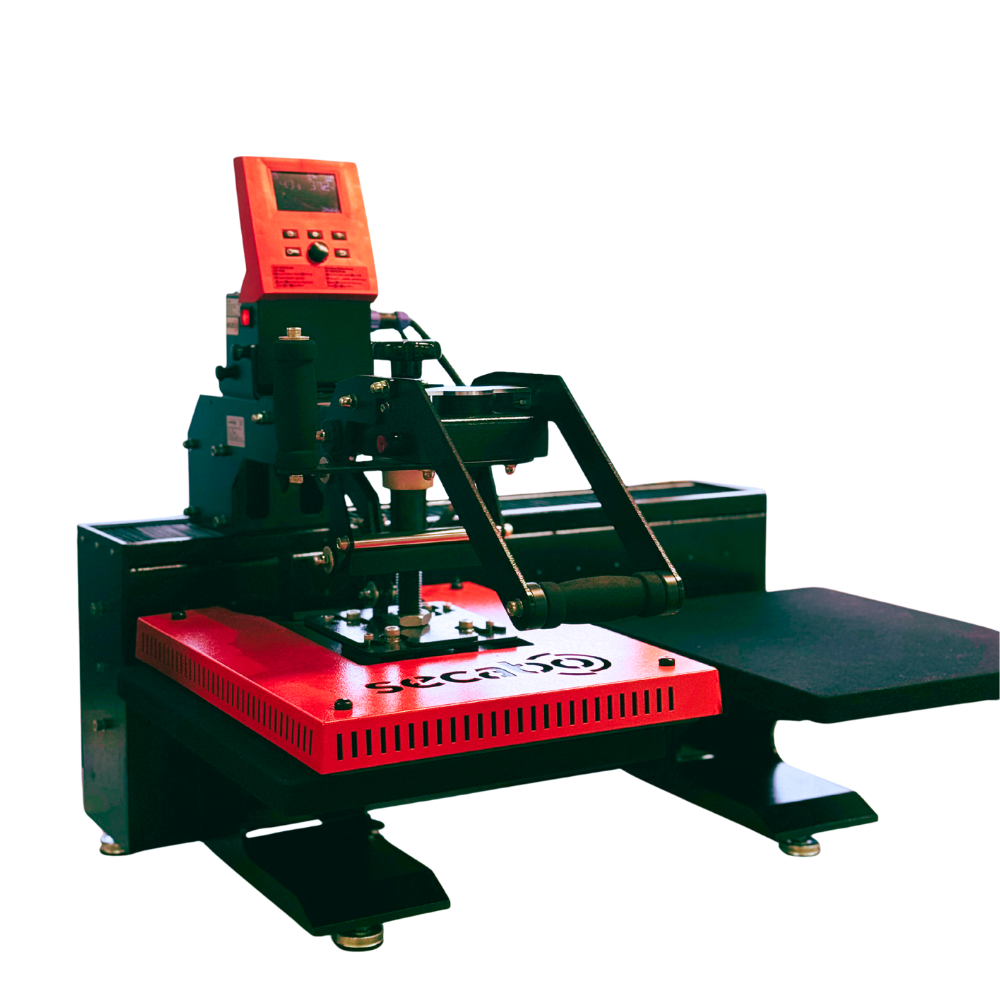

With the Secabo TD7 SMART, you can produce items in alternating operation on two work surfaces, each measuring 40 x 50 cm, with no downtime between pressing cycles. Using Bluetooth and the Secabo Smart Transfer app, you can access the correct parameters for DTF, flex, flock or sublimation. Encapsulated guides and the modular design make this double-plate press robust, low-maintenance and easily expandable.
Application: Chromaluxe, Textile, White toner
Features: 2 base plates, 40x50cm heating plate, auto open press
Worktop size 2 x 40 cm x 50 cm
Contents of the package Mechanical base with heating element, controller box, C13 power cable, tools, user manual
Print settings Height adjustment of the heating plate using a handwheel
Max. temperature 250 °C
Max. delay time 999 s
Power supply 230V / 50Hz – 60Hz
Surroundings +5°C – +35°C / 30% – 70% relative humidity
Weight including packaging 98.60 kg
Brand Secabo
Warranty 24 months
Manuelle Doppelplattenpresse · 2 x 40 x 50 cm · Bluetooth

Secabo TD7 SMART: Double the work surface meets smart control.

Verdopple deinen Ausstoß und eliminiere Anwendungsfehler. Zwei großzügige 40 x 50 cm Platten für nahtlose Workflows, gesteuert über die intelligente Secabo Smart Transfer App via Bluetooth.

Jetzt smarte Doppelplatten-Power sichern
Die wichtigsten Vorteile

Smart. Fast. Stable.

Vier Stärken der TD7 SMART auf einen Blick.

SMART Control & Bluetooth

App-Anbindung für geprüfte Presstage-Parameter und individuelle Auftragsvorlagen.

Doppelplatten-Power

2x 40x50 cm Arbeitsfläche. Vorbereiten ohne Wartezeit, während die Gegenseite presst.

Bis 70 mm Objekthöhe

Mühelose Verarbeitung von dicken Sweatshirts, Jacken und festen Medien.

Gekapselte Führungen

Reibungsloser, extrem leichtgängiger Schwenkvorgang für ermüdungsfreies Arbeiten.

SMART Control

Full control via Bluetooth and the Secabo SMART app

Schluss mit Rätselraten bei Temperatur und Zeit. Wähle in der kostenlosen App einfach Textil- und Folienart aus – die optimalen Parameter werden per Fingertipp an den Controller gesendet. Eigene Presets für Großaufträge lassen sich im Handumdrehen speichern.

Doppelplatten-Workflow

The seamless dual-plate workflow

Nutze jede Sekunde deiner Produktionszeit sinnvoll aus. Während Station A presst, legst du auf Station B bereits das nächste Motiv auf. Sobald die Zeit abgelaufen ist, schwenkst du den Heizkopf einfach herüber – fertig.

Stabilität

Industrial stability for viscous media

Mit einer Objekthöhe von bis zu 70 mm meistert die TD7 SMART auch voluminöse Winterjacken und Workwear mühelos. Das ergonomische Handrad erlaubt eine feine, stufenlose Justierung des Anpressdrucks.

Modular

Modular and future-proof, with scope for expansion

Dein Betrieb wächst, die Presse wächst mit. Tausche die 40 x 50 cm Platten werkzeuglos gegen kleinere Formate aus oder rüste die Thermobase TB7 für schonende Unterhitze nach.

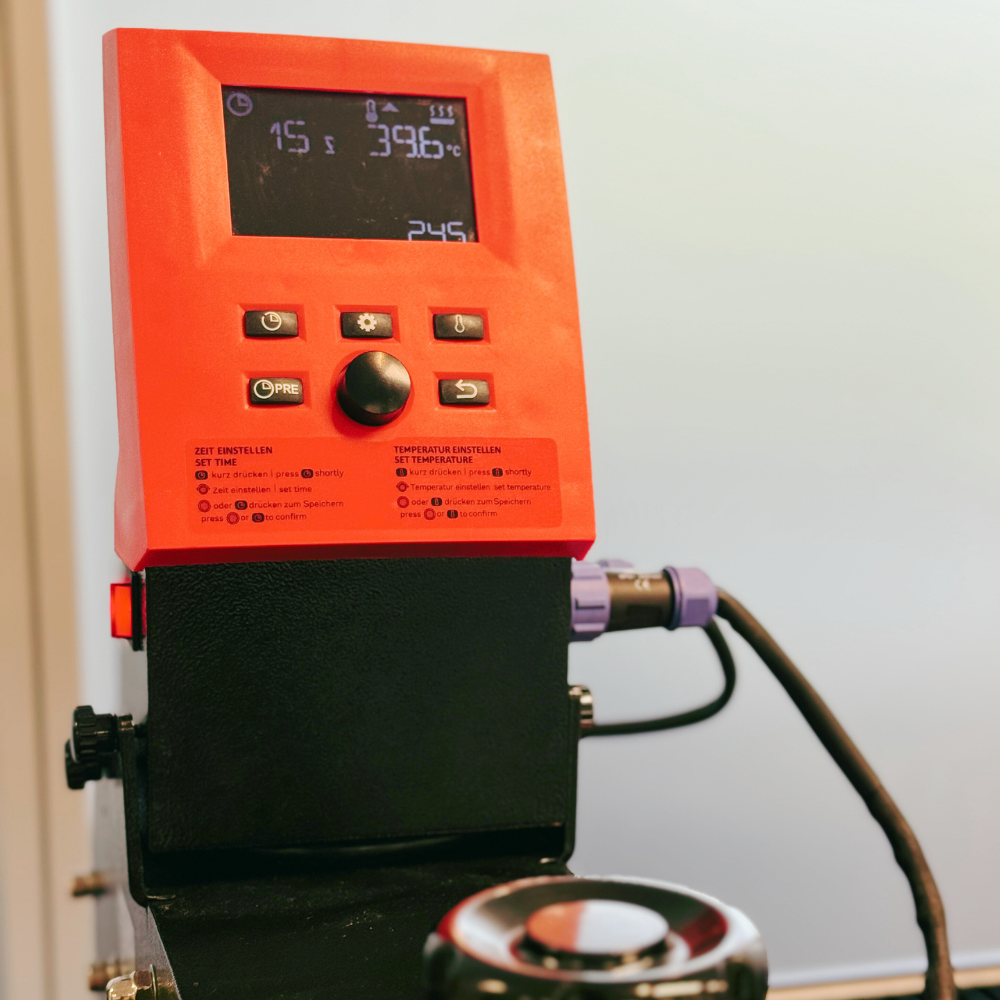

Smart SMART Controller
Bluetooth controller & app control: Connects wirelessly to the Secabo Smart Transfer app and transmits verified temperature and time parameters directly to the press – including its own preset management for recurring jobs.

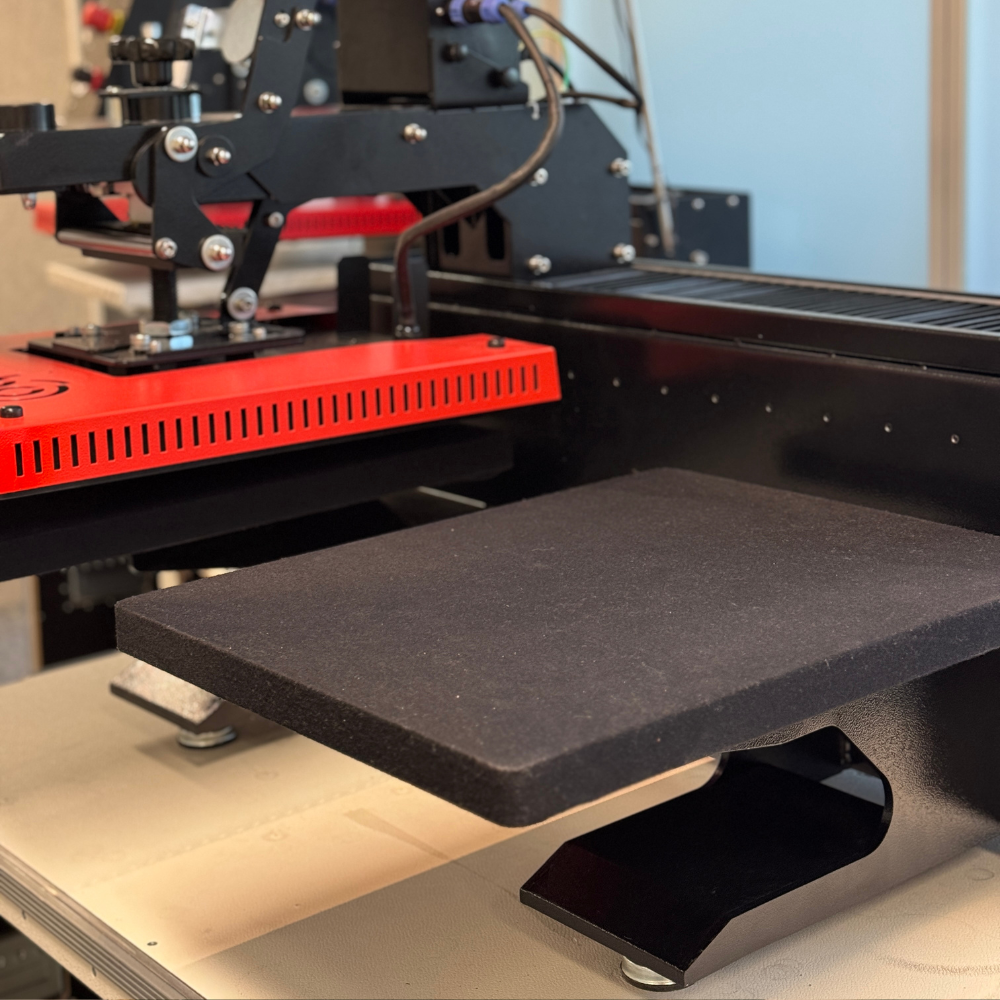

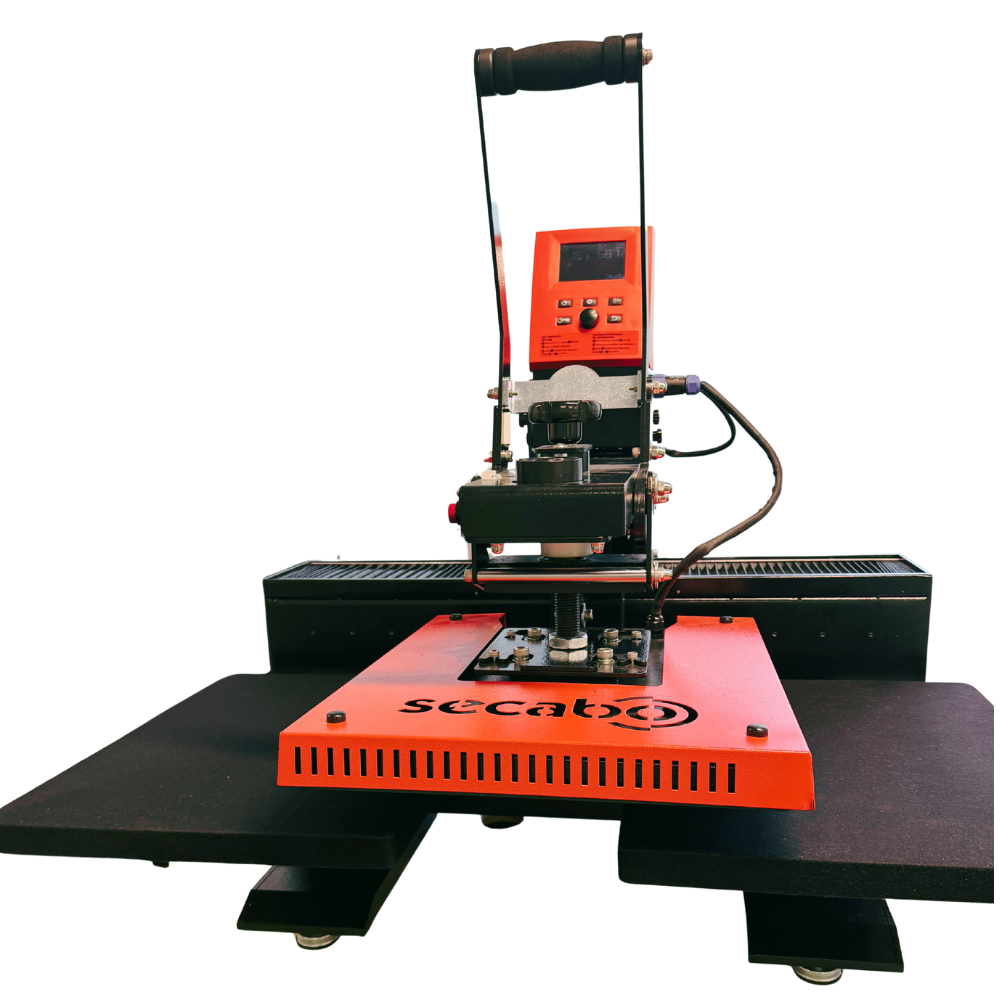

Two 40 cm × 50 cm base plates
Dual workstations: Ensure an uninterrupted production cycle. One garment is being pressed whilst the next T-shirt is already being positioned at the second station.

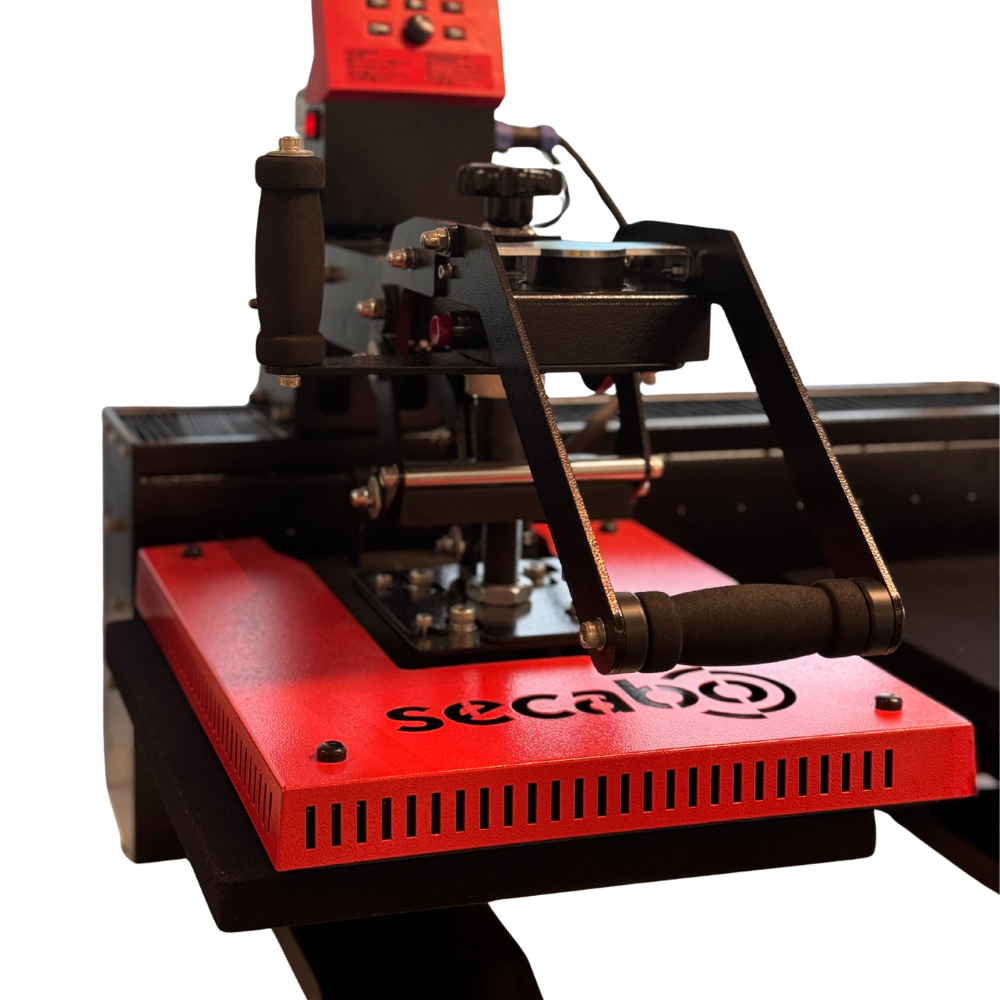

Smooth-running swivel arm with enclosed guide
Ergonomic swivel mechanism: Sealed ball bearings ensure a smooth, maintenance-free swivelling motion of the heating head between the two stations during continuous daily use.
Stepless pressure adjustment up to 70 mm
Hand wheel for variable object heights: Precise adjustment of the contact pressure for a wide variety of materials and extra-thick textiles such as heavy hoodies, jackets or workwear.
Modular substructure
Tool-free changeover system: Allows plates to be swapped in a matter of seconds for special formats (e.g. for pockets or sleeves) or for retrofitting the Thermobase TB7 heated base plate.

The TD7 SMART combines the best of both worlds: the unbeatable throughput of a double-plate press and the absolute process reliability of our SMART technology. You double your output whilst simultaneously controlling all parameters precisely via a Bluetooth app. For growing businesses that want to handle large print runs flawlessly and without delays, there is no better solution in this class.

Andreas Steinert Sales Team
Contact details
Address
Your request
Privacy
Fields marked with asterisks (*) are required.
YOW! Treueprogramm

Buy press products at YOW! and save money in the long run!

Sichere dir jetzt deine Secabo TD7 SMART und erhalte automatisch exklusive Sonderkonditionen: 5 % Rabatt auf alle DTF-Transfers und 5 % Rabatt auf das gesamte Textilsortiment bei YOW! Dein Rabatt gilt sofort – für die erste und jede weitere Bestellung.

Weitere Informationen zum Treueprogramm
5% off DTFs when you buy a Heat Press

With DTF (Direct-to-Film) transfers, you’ll set new standards in terms of flexibility and quality. These transfers allow you to create detailed, full-colour prints on almost any type of fabric – whether light or dark. Simply press, peel off, and you’re done!

Order DTFs now
5 per cent off textiles when you buy a Heat Press

Discover a huge selection of high-quality textiles and promotional items, specially optimised for further processing. Whether T-shirts, hoodies, workwear or bags – our products offer the perfect surface for DTF transfers, flex film and sublimation. Provide your customers with long-lasting quality and maximise your printing results

Order textiles now

Technical Specifications & Accessories

Technical Specifications
  • Work surface: 2 x 40 x 50 cm
  • Connectivity: Bluetooth 4.0
  • Temperature: max. 250 °C
  • Object height: max. 70 mm
  • Power supply: 230 V / 2.0 kW
  • Weight: approx. 95 kg net
Compatible transfer methods
  • DTF transfers
  • Flex
  • Flock
  • Sublimation
  • Chromaluxe
  • Screen-printed transfers
Recommended accessories
  • Secabo Thermobase TB7
  • Standard interchangeable plates: 8 x 12 cm to 20 x 30 cm
  • Double cross laser
  • Membrane base plates
