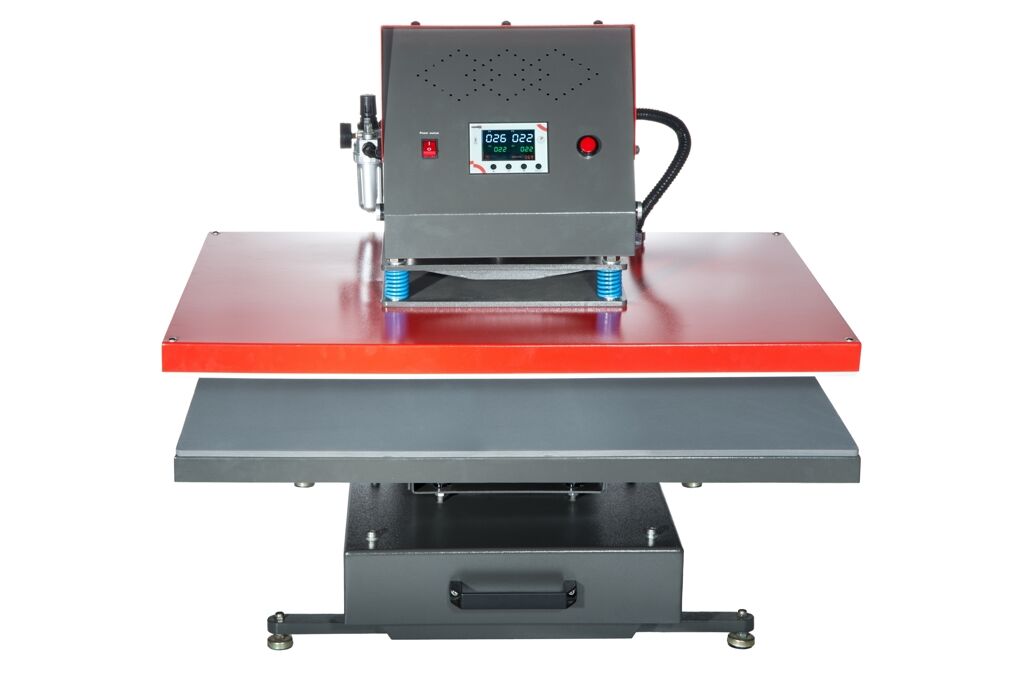

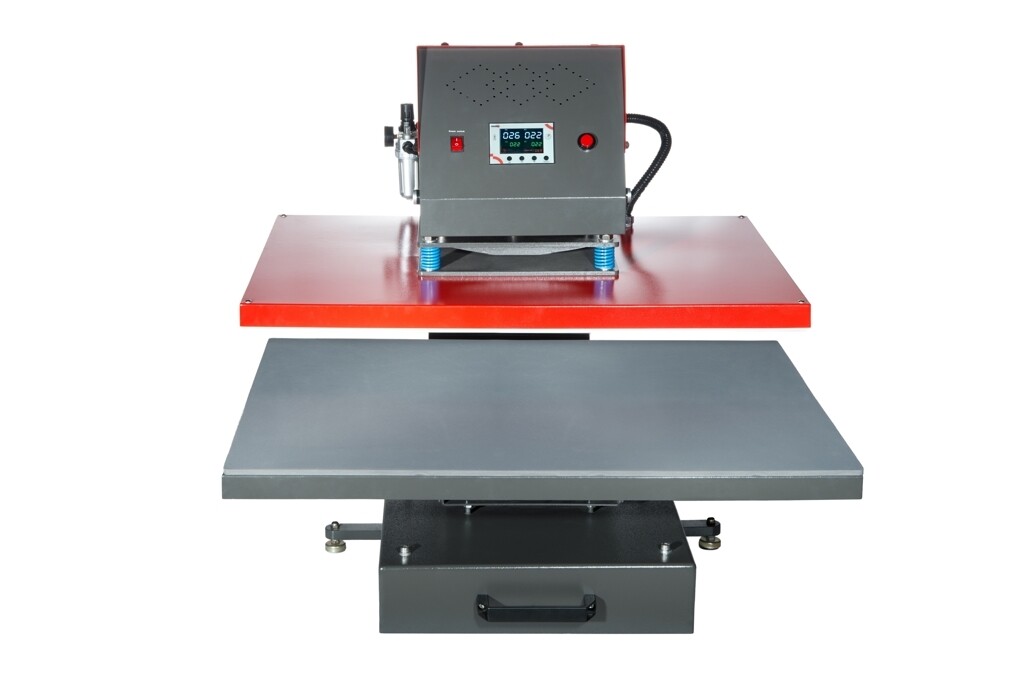

Secabo TP10 pneumatic Heat Press 80cm x 100cm
Product number:
109.010.11
GTIN/EAN:
4251486204192
Weight:
409,00 kg
The newly developed TP10 from Secabo is the ideal Heat Press for professional finishers of large-format objects in particular: With an extra large work surface of 80cm x 100cm, this heat press model can be used to carry out heat transfers on large-format substrates such as flags, bed linen or textile room dividers. The base plate acts as a drawer element, which makes it easy to arrange the transfer objects and can be handled with little effort despite its size. The contact pressure of the TP10 Heat Press is generated with compressed air, which means easy working with consistent and reproducible results. The pneumatic heating platen head allows for error-free transferring of a wide variety of materials without offset effects or similar due to the vertical contact pressure. The Secabo TP10 Heat Press with a heating capacity of 5.1 kW is suitable for all known heat transfer processes and can therefore be used in almost all areas of transfer technology.
| Application: | Chromaluxe, Textile |
|---|---|
| Features: | 80x100cm heating plate, auto open press |
| Series: | TP10 |
Login
| Abmessungen | 105cm x 90cm x 145cm |
| Größe Arbeitsfläche | 80cm x 100cm |
| Lieferumfang | Transferpresse, Stromkabel, Anschluss-Set für Kompressor, deutschsprachige Bedienungsanleitung |
| Druckeinstellung | Einstellung des Pneumatikdrucks |
| max. Anpressdruck | 150 g/cm² |
| max. Temperatur | 225 °C |
| max. Zeitvorwahl | 999 s |
| Stromversorgung | 3P+N+PE, 5,1kW. Der Anschluß durch einen Fachmann wird empfohlen. |
| Umgebung | +5°C - +35°C/ 30% - 70% Luftfeuchtigkeit |
| Gewicht ohne Verpackung | 320 kg |
| Gewicht mit Verpackung | 409,00 kg |
| Marke | Secabo |
