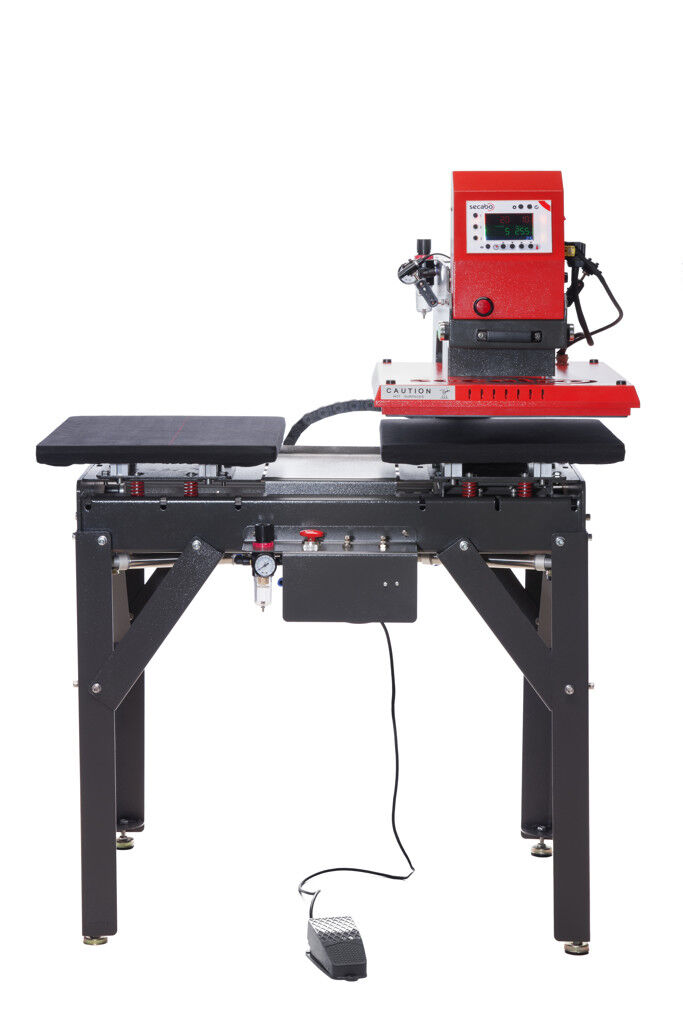

Secabo TPD7 PREMIUM automatic double platen press
Top performance with high contact pressure, impressive heating power and heat distribution: that is the claim of the new TPD7 PREMIUM Heat Press from Secabo. The pneumatic double-plate press impresses with automatic movement of the press head, versatile features and a modular design. Transfers with an extremely high contact pressure of 12kN at 10bar (600g/cm2 or 1.2t) can be carried out on the generously dimensioned base plates, each measuring 40cm x 50cm. Intelligent functions make the application convenient and efficient, including the pre-press function with adjustable pre-press time, separately adjustable times for both base plates and storable sets for times and temperature. The heating plate with a power consumption of 2.5 kW ensures a high heat capacity with professional temperature distribution. The easily adjustable, reproducible pneumatic pressure can be optimally adapted to all transfer objects. Users benefit from added flexibility thanks to easily interchangeable components and compatibility with Secabo's quick-change systems, exchangeable plates and membrane base plates. The TPD7 PREMIUM Heat Press from Secabo complies with German safety standards. The stable base supports an ergonomic working height. The foot switch supplied makes operating the press head child's play.
- Extremely high contact pressure of 12kN at 10bar (600g/cm2 or 1.2t)
- Automatic movement of the press head
- Pre-press function with adjustable pre-press time
- Separately adjustable times for both base plates
- Memorisable sets of times and temperatures
- Extremely high heat output and heat capacity of the heating plate, as well as professional heat distribution
- Includes stable stand for an ergonomic working height

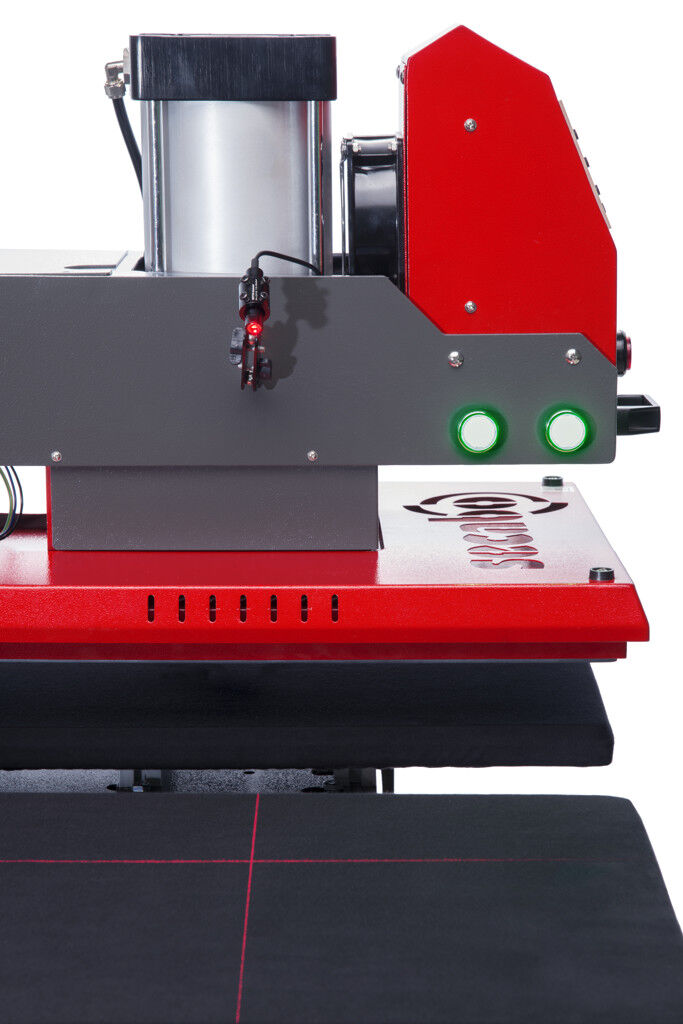

- Includes 2 cross lasers for easy object positioning
| Application: | Chromaluxe, Textile, White toner |
|---|---|
| Features: | 2 base plates, 40x50cm heating plate |
| Series: | TPD7 |
| Abmessungen | 90cm x 134cm x 84cm |
| Größe Arbeitsfläche | 2 x 40cm x 50cm |
| Lieferumfang | Transferpresse, Stromkabel, Anschluss-Set für Kompressor, deutschsprachige Bedienungsanleitung |
| Druckeinstellung | Einstellung des Pneumatikdrucks |
| Empfohlene Druckluft | Druckluft-Qualitätsklassen nach ISO 8573-1:2010 (1:4:2) |
| max. Anpressdruck | 600g/cm² bei 10bar g/cm² |
| max. Temperatur | 225 °C |
| max. Zeitvorwahl | 999 s |
| Stromversorgung | Wechselspannung 230V / 50Hz - 60Hz, 2,5kW |
| Umgebung | +5°C - +35°C/ 30% - 70% Luftfeuchtigkeit |
| Gewicht ohne Verpackung | 110 kg |
| Gewicht mit Verpackung | 221,00 kg |
| Marke | Secabo |
