Secabo TS7 LITE modular Swing Press, 40 cm x 50 cm
€2,047.99
Available in 21 days, delivery time 1-3 days
Secabo provides all operating instructions and manuals online in several languages:
In the Secabo Media Centre you will find product photos and many other materials in original resolution.
Top performance and a high level of convenience with the Secabo LITE series
The Secabo TS7 LITE marks an innovative milestone in the development of swing-away Heat Presses. As part of Secabo’s new LITE series, the TS7 LITE offers a cost-effective, high-performance solution for demanding textile finishing and transfer printing projects. With a working area of 40cm x 50cm, it is ideal for larger designs and enables efficient production whilst maintaining the highest quality.
The LITE Heat Presses offer everything that makes textile transfers with Secabo so convenient. All professional applications of common heat transfer processes, such as flock films, flex films, sublimation, DTF transfers, etc., are of course possible. The Secabo TS7 LITE can be optionally fitted with interchangeable plates in various formats – including a membrane base plate, a quick-change system and a slide extension for use as a double-plate press.
- Intelligent display functions: Quick andeasy adjustment of temperature and time via the digital controller.
- State-of-the-art press design: The TS7 LITE impresses with its intelligent design and the use of high-quality materials. Its modular construction allows for quick and easy adaptation to different requirements.
- A basic model with extensive upgrade options: The TS7 LITE offers numerous possibilities for customisation and expansion to create your ideal work tool. From retrofitting with a passive membrane base plate to integrating the Secabo TB7 Thermobase for even more precise transfers – the TS7 LITE adapts to your needs.
The Secabo TS7 LITE Heat Press represents a new generation of Heat Presses that enables efficiency, flexibility and the highest quality in textile finishing. Discover the wide range of possibilities offered by the TS7 LITE and set new standards in your production.
- The Heat Press opens automatically once the cycle time has elapsed
- Digital controller for temperature and timeÂ
- Temperature and time can be adjusted on the controller using the arrow keys
- Modular design; components can be easily replaced
- Easily adjustable contact pressure
- High-quality heating plate with additional protective plate
- Suitable for all standard transfer processes
- Can be retrofitted with accessories such as interchangeable plates, slide extensions or membrane heating plates for even greater productivity.
| Application: | Acar, Chromaluxe, Sublimade, Textile, White toner |
|---|---|
| Features: | 40x50cm heating plate, auto open press |
| Series: | TS7 |
| Technology: | Lite |
| Worktop size | 40cm x 50cm |
| Dimensions | 80 cm x 45 cm x 30 cm |
| Contents | Mechanical base, heating plate and base plate, LITE controller box, C13 IT power cable, tools, user manual |
| Pressure adjustment | Height adjustment of the heating plate via handwheel |
| Max. contact pressure | 250 g/cm² |
| Max. temperature | 225 °C |
| Max. timer setting | 999 s |
| Power supply | AC 230 V / 50 Hz – 60 Hz, 1.80 kW |
| Ambient conditions | +5°C – +35°C / 30% – 70% relative humidity |

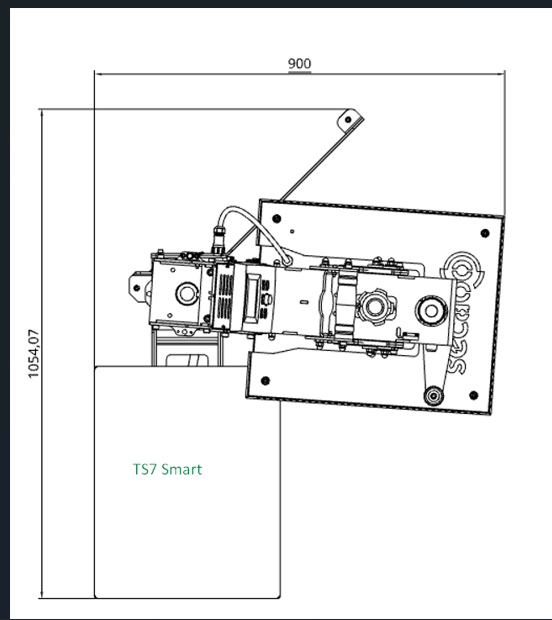

| Dimensions with stand extension (swivelled open to the side): |
W: 900 mm x D: 1055 mm x H: 854 mm |
| Options | Quick-change system, various interchangeable plates, slide extension, membrane base plate, TB7 thermobase |
| Weight including packaging | 66.60 kg |
| Brand | Secabo |
