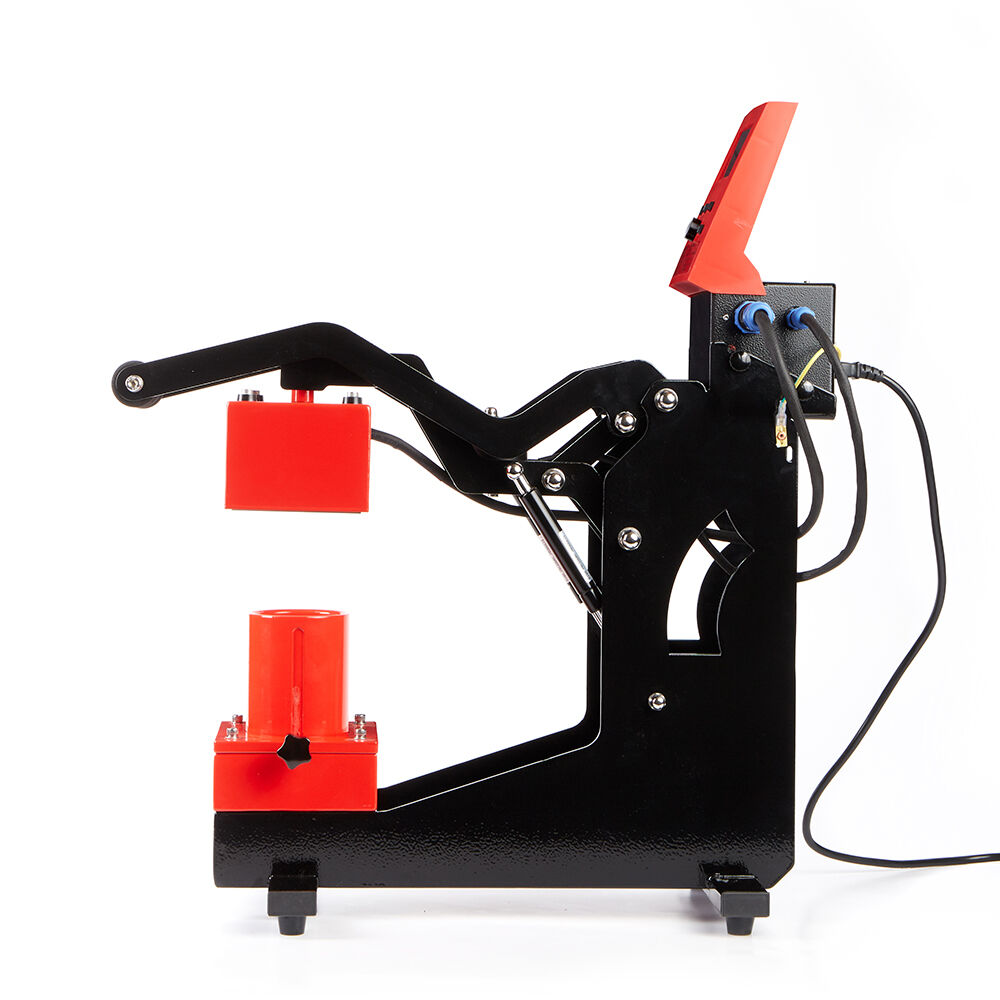

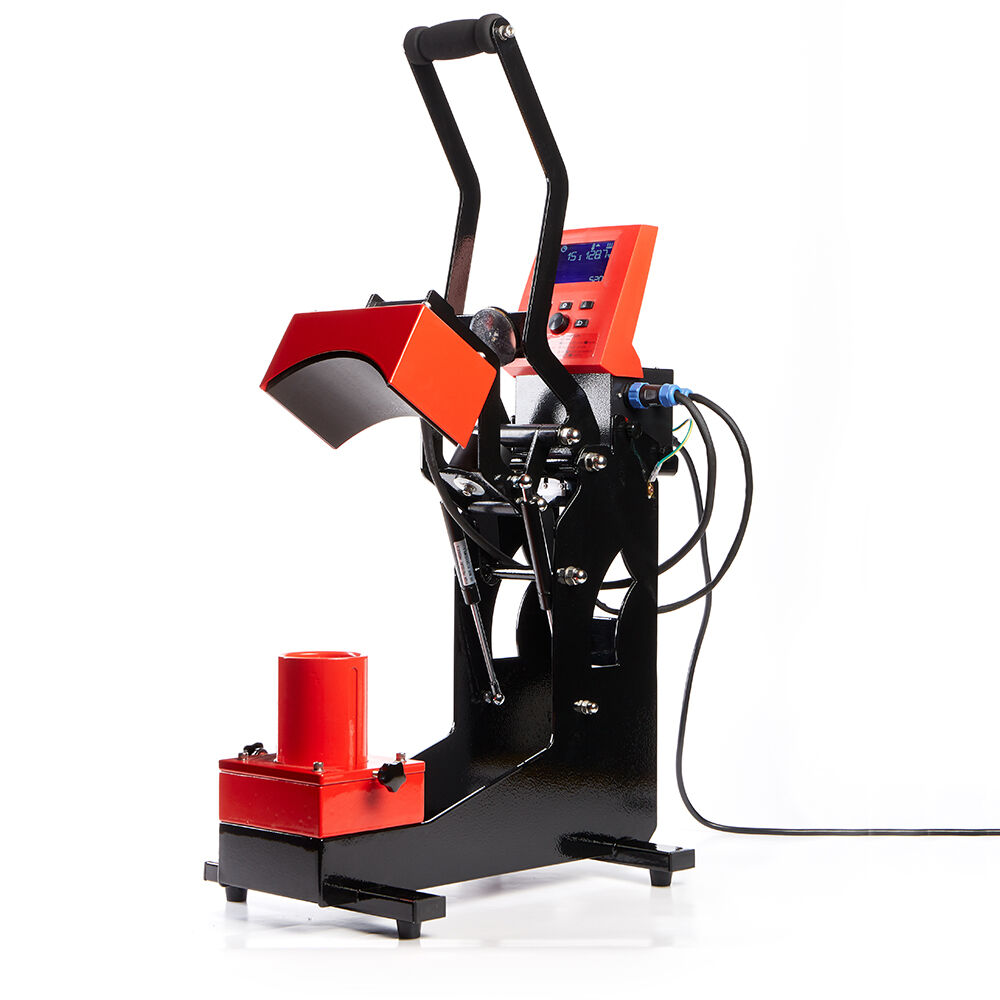

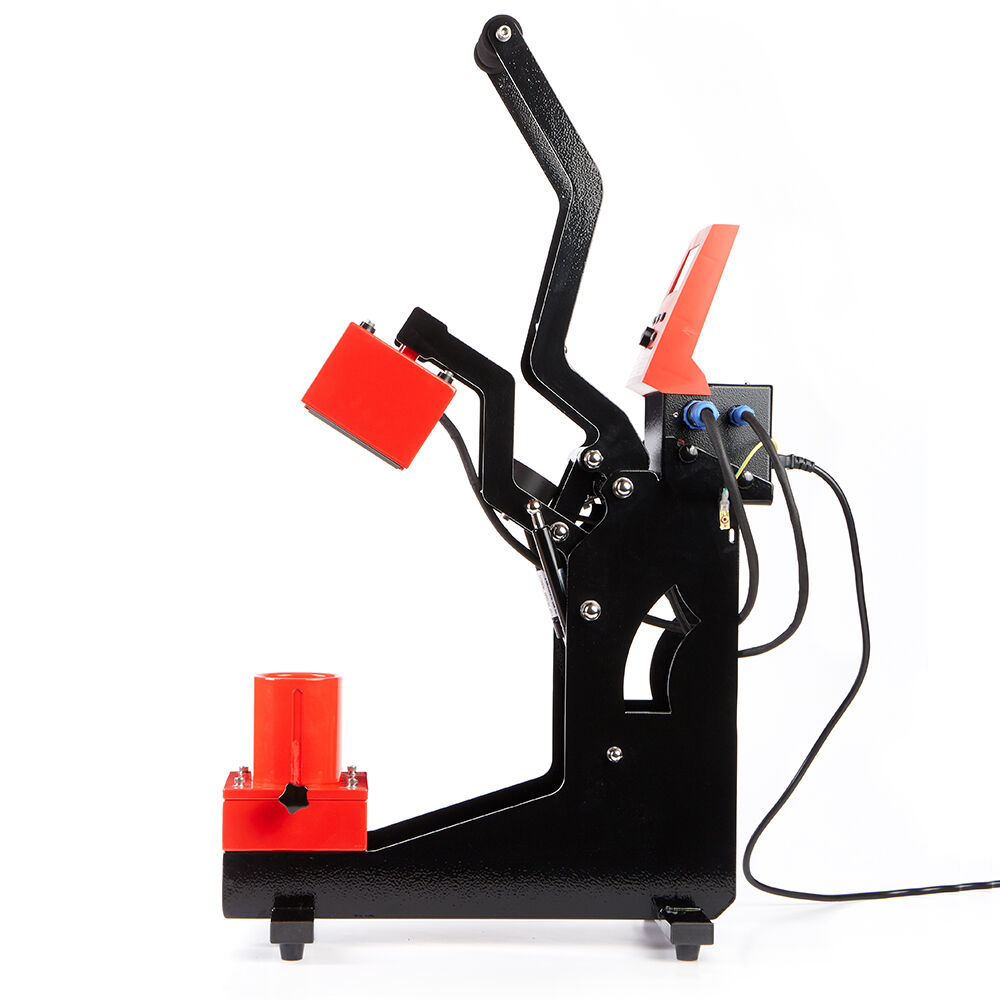

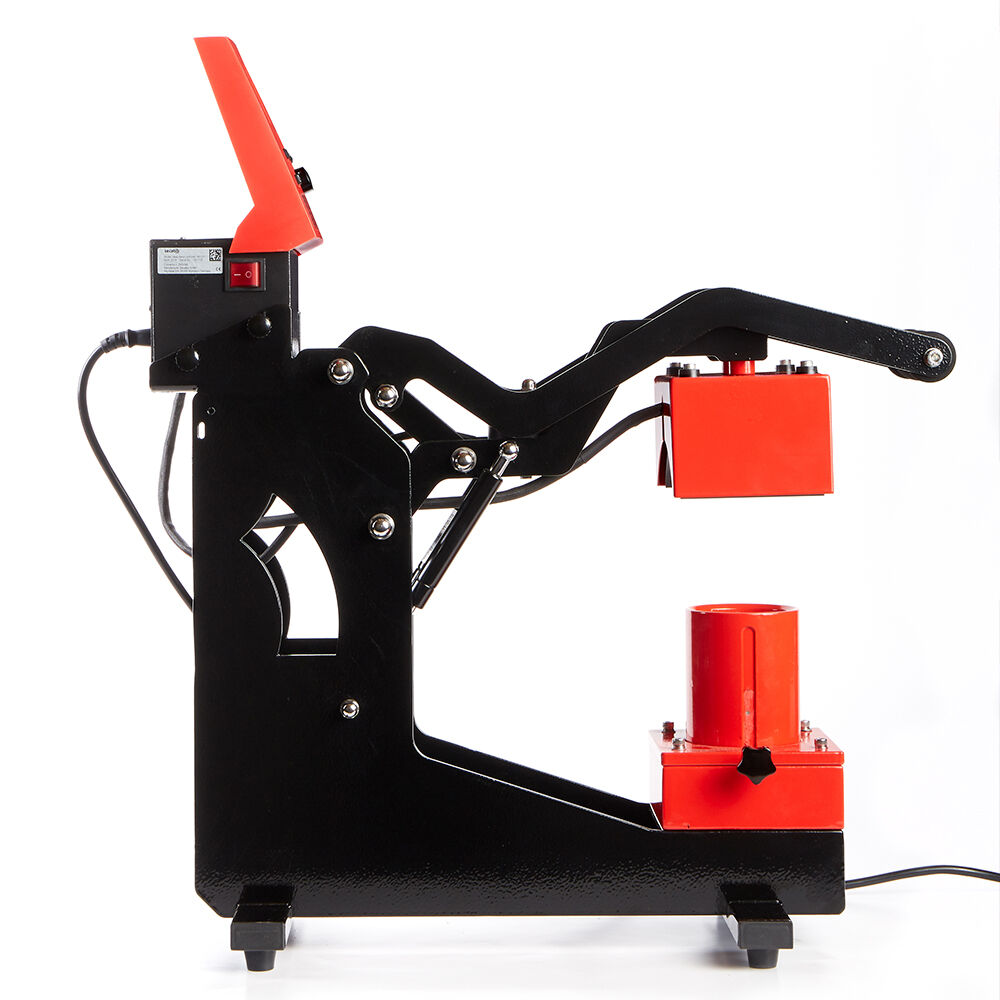

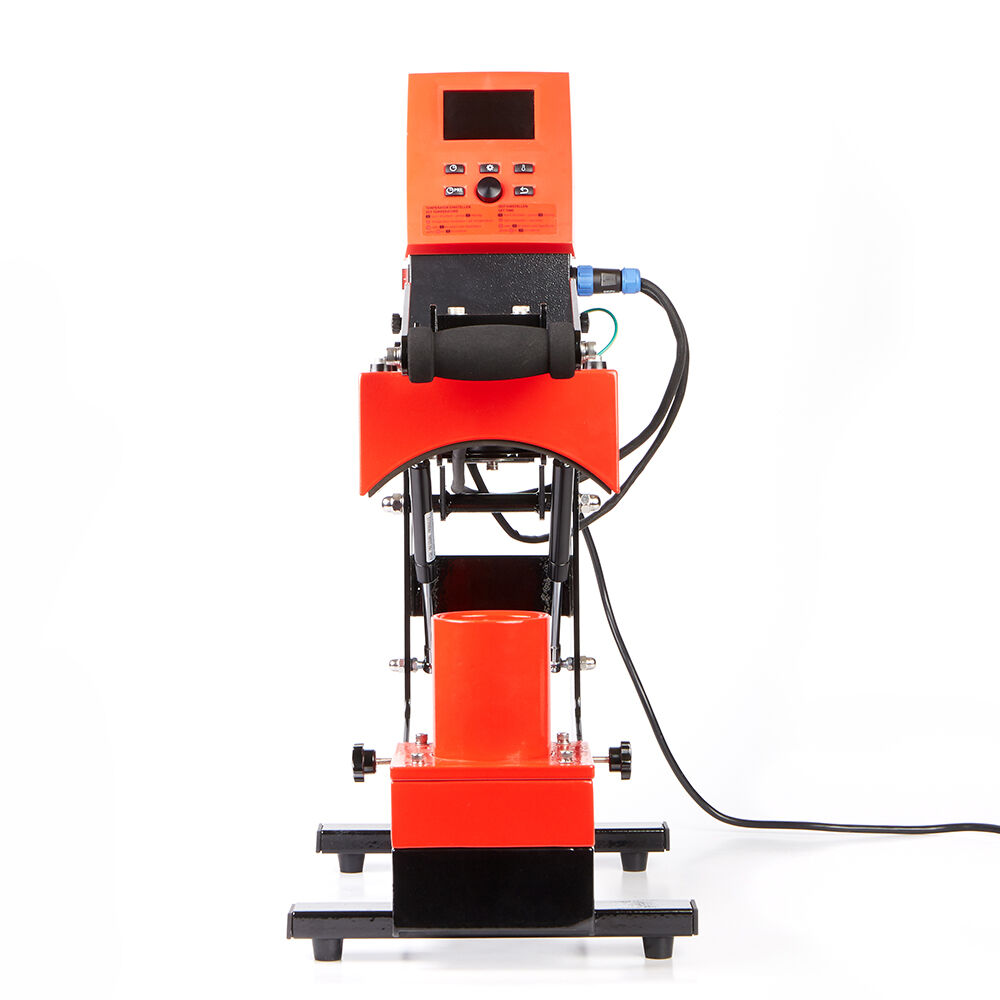

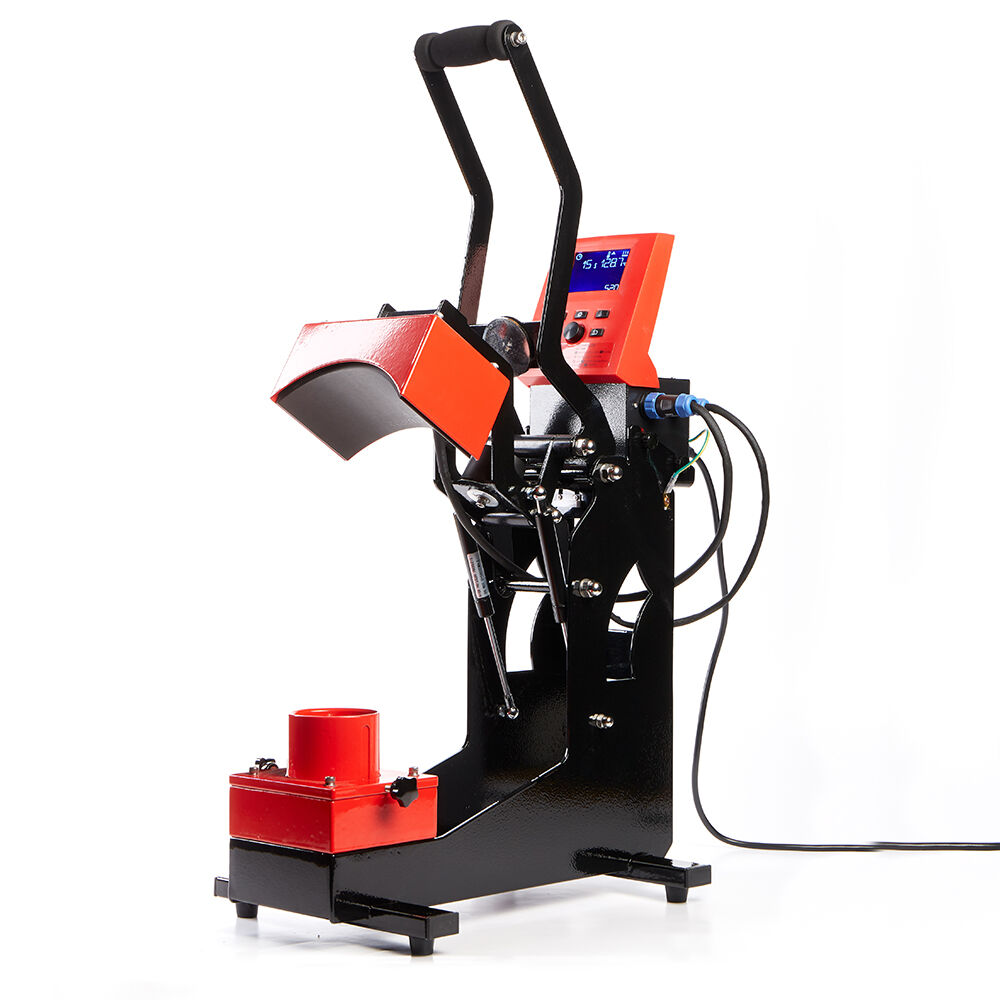

Secabo TCB SMART ball press

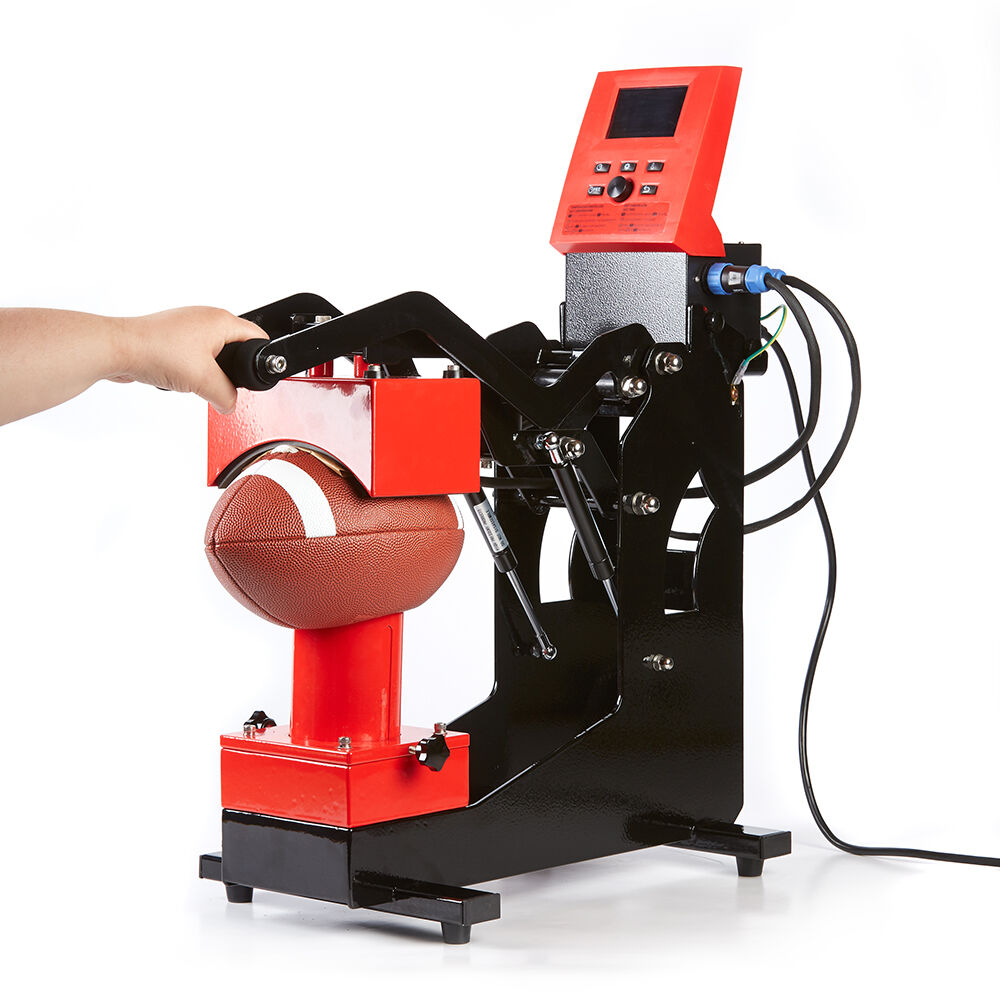

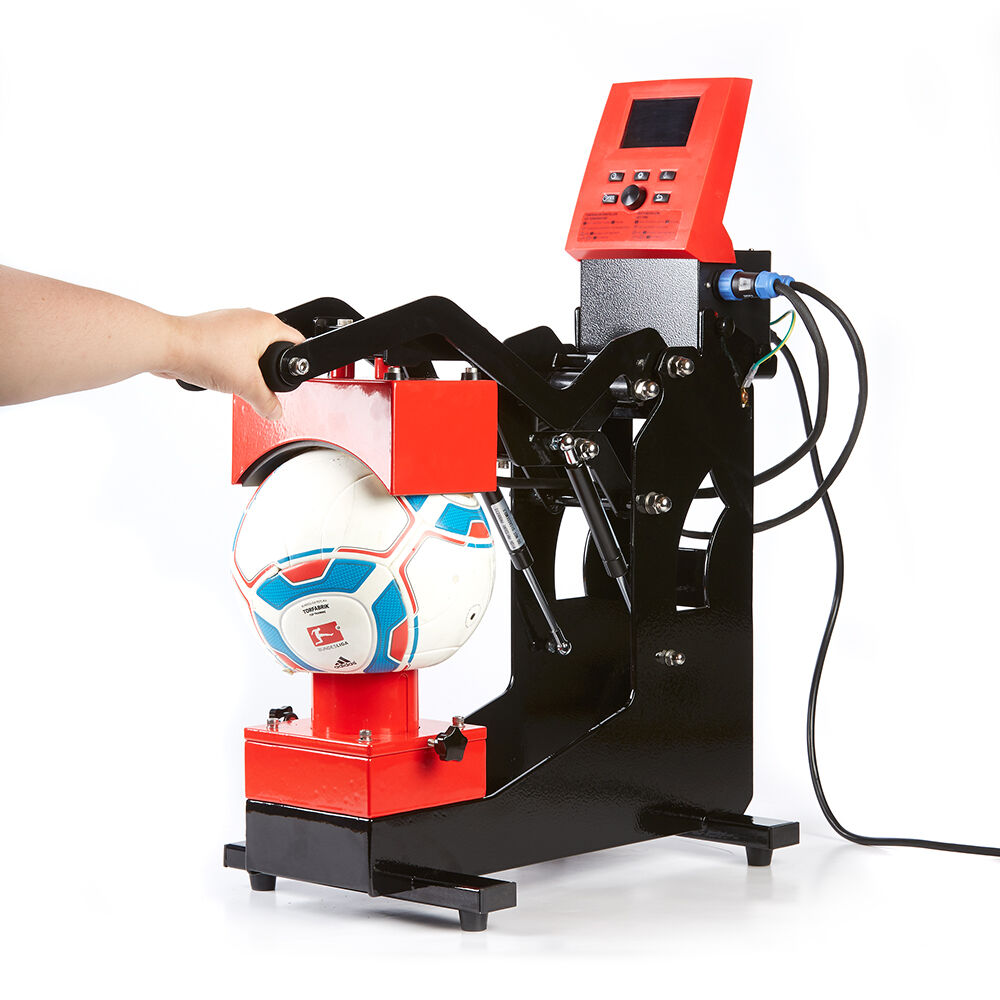

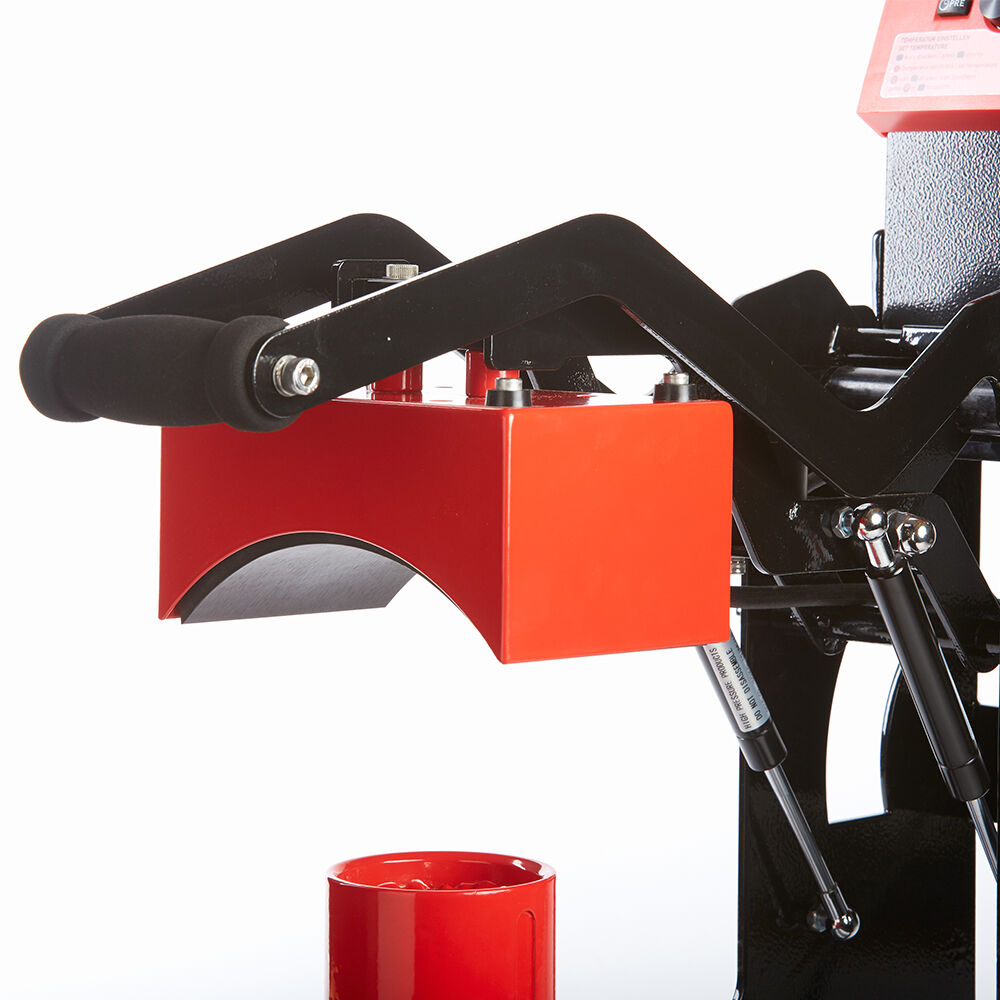

Play in the first league with the new ball press from Secabo - Innovative ways and thus an even better performance in the finishing of balls, opens Secabo with the new ball press TCB SMART. This transfer press allows you to finish most inflatable sports balls, including synthetic leather footballs, handballs and basketballs, in just a few simple steps. Even a football can be customized with a logo, player name or number using the Secabo TCB Smart Ball Press. Personalized mementos and prizes for events or giveaways can be produced with single or multi-color transfers. All balls can be pressed at the same temperature of 113 °C for 8 seconds. The low temperature is important to avoid damaging delicate plastics or synthetic leather. We recommend a transfer size of up to 5 cm x 8 cm so that the foil lies smoothly on the curved surface of the ball. The contact pressure of the new transfer press TCB SMART for balls from Secabo is adjusted at the bottom by pushing the cylinder down and adjusting it with the two screws left and right. The specially shaped heating plate fits almost all ball sizes and shapes. The adjustable cylinder ensures that the pressure can be adjusted as precisely as possible to the ball size. The automatic opening ball press has a large opening angle as well as a button for manual opening before the set time has elapsed. It is suitable for the professional application of all common hot transfer processes such as flock foils, flex foils, sublimation, transfer, inkjet flex, etc. The ball press has a digital temperature and time display. Additional functions such as the calculation of heating times and warning functions make this, in combination with the Secabo App, a valuable aid for all common hot transfer processes.
Our SMART models are equipped with new electronics that were developed on the basis of Secabo's extensive industry know-how and are "made in Europe". In addition to known settings, such as temperature and time, the range of functions has been extended to include settings for pre-pressing, a counting function, sleep and auto-off mode, 10 memory locations for transfer parameters, and many other features. The control concept has been completely reworked to further improve press handling for the user - the new rotary push button and the large display are significant contributions to this.
The Secabo TCB ball press convinces with a very intelligent design and construction. When selecting the processed components, attention was paid to high-quality materials and surfaces. The flexibly adjustable cylinder offers even more application possibilities for finishing. All in all, a round thing!
The space-saving design of the Secabo ball press makes it possible to fit several transfer presses in a small space, which allows you to maximize profit and production. Our recommendation: Switch on the transfer press only for actual use, because this way you will preserve the heating element and save energy and thus also money.
Duration and temperature can easily be adjusted and monitored using the digital controller.
The work pressure is easy to adjust - in each case matching the transfer object and procedure.
The safety and quality of this device is constantly monitored - according to German safety standards.
The heat press automatically opens after the set time has elapsed.
The high-quality heat plate ensures an exact temperature distribution over the entire heating surface.
| Dimensions open | 32 x 92 x 60cm |
| Dimensions closed | 32 x 71 x 70cm |
| working area | 5 cm x 8 cm |
| scope of delivery | Mechanical base with heating element, Controller box, C13 cold appliance connection cable, tools, operating instructions |
| pressure setting | the heating plate can be adjusted with a hand reel |
| max. downforce | 250 g/cm² |
| max temperature | 220 °C |
| maximum time preset | 999 s |
| max. opening angle | 40 ° |
| power supply | AC voltage 230V / 50Hz - 60Hz, 1.00kW |
| environment | +5°C - +35°C / 30% - 70% humidity |
| weight without packaging | 25 kg |
| weight with package | 29,00 kg |
| Brand | Secabo |
A heat press, transfers text, logos or images onto different materials. The device works with pressure as well as heat in order to achieve long-lasting results. A heat press is like a large iron, but with more pressure and more intensive heat. Heat presses are suited for a wide range of transfer processes.
motives from flock or flex material or decals can be transferred to garments with the heat press. E.g. soccer jerzys can be decorated with names, numbers or the club's logo
sublimation transfer:In this process, the heat press transfers graphics, photos and texts that have been printed on a commercially available printer to polyester materials. Printing requires nothing more than special sublimation inks. The heat created by the heat press causes the ink to dye polyester materials. In addition to clothing, this procedure is also suitable for individually designing cups, puzzles, mouse pads, tableware and much more. Please note that this procedure should only be used on bright, preferably white materials, to facilitate a realistic color reproduction.
Inkjet flex:A design is cut out of an inkjet flex foil and then transferred to a piece of clothing using a heat press. The highlight: Regular ink from a normal printer is preserved by special varnish beads inside the inkjet flex foil through the transfer process. This facilitates the production of durable textile finishes in photo quality with simplest means. One might, for example, design a soccer fan shirt with a country pennant.such as a country pennant on a soccer fan shirt, etc.
Chromablast Transfer:A design is cut out of an inkjet flex foil and then transferred to a piece of clothing using a heat press. The highlight: Regular ink from a normal printer is preserved by special varnish beads inside the inkjet flex foil through the transfer process. This facilitates the production of durable textile finishes in photo quality with simplest means. One might, for example, design a soccer fan shirt with a country pennant.such as a country pennant on a soccer fan shirt, etc.
The uses and possibilities of a heat press are as diverse as the various different transfer methods that exist. Heat presses allow both professionals and ambitious hobbyists to make their personal design ideas a reality, such as for example:
Creative design of cups and mugs
Individual design of mouse pads
Processing and design of clothing such as T-shirts, jackets or sweaters, for example, for bands, schools, work clothes, designer collections
durable garment decoration with motives from flock or flex - ideal for sport clubs
Creation of personal Hat
Design your own towels and bathroom textiles
Creative design of large-scale photo motifs on bathroom or kitchen tiles
create your individual bags
When choosing the appropriate heat press, the shape of the receiving material and the size of the objects to be transferred are key factors. Folding presses or swing presses are used to finish flat materials, such as textiles or tiles, with a personalized design. The Secabo TC 2 heat press, for example, is a reliable entry-level folding press for smaller designs. The Secabo TC 5 heat press is suitable for larger designs. There are special mug presses that perfectly adapt to the shape of a mug to allow for creating an individualized mug collection, such as the Secabo TMUG heat press.
